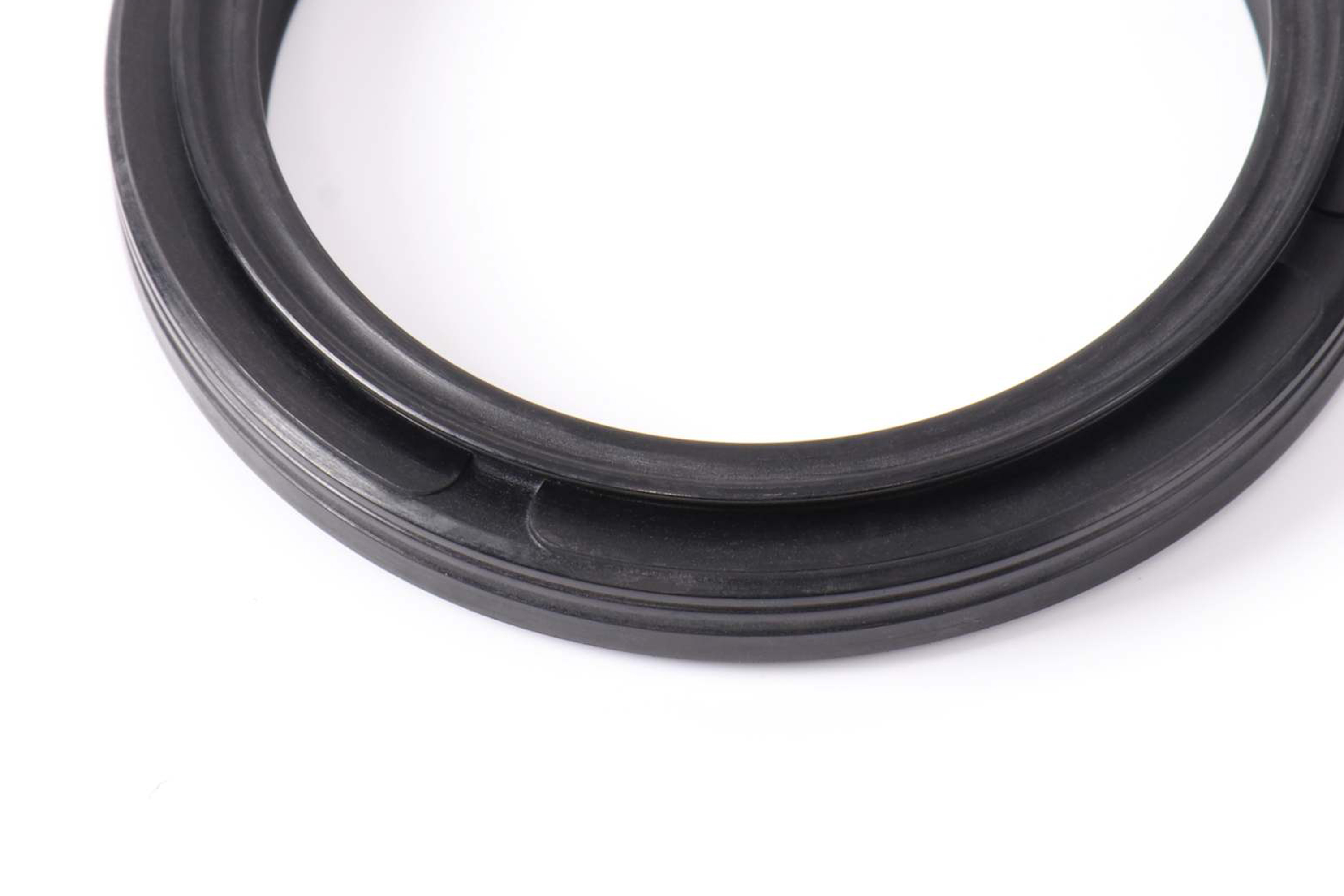

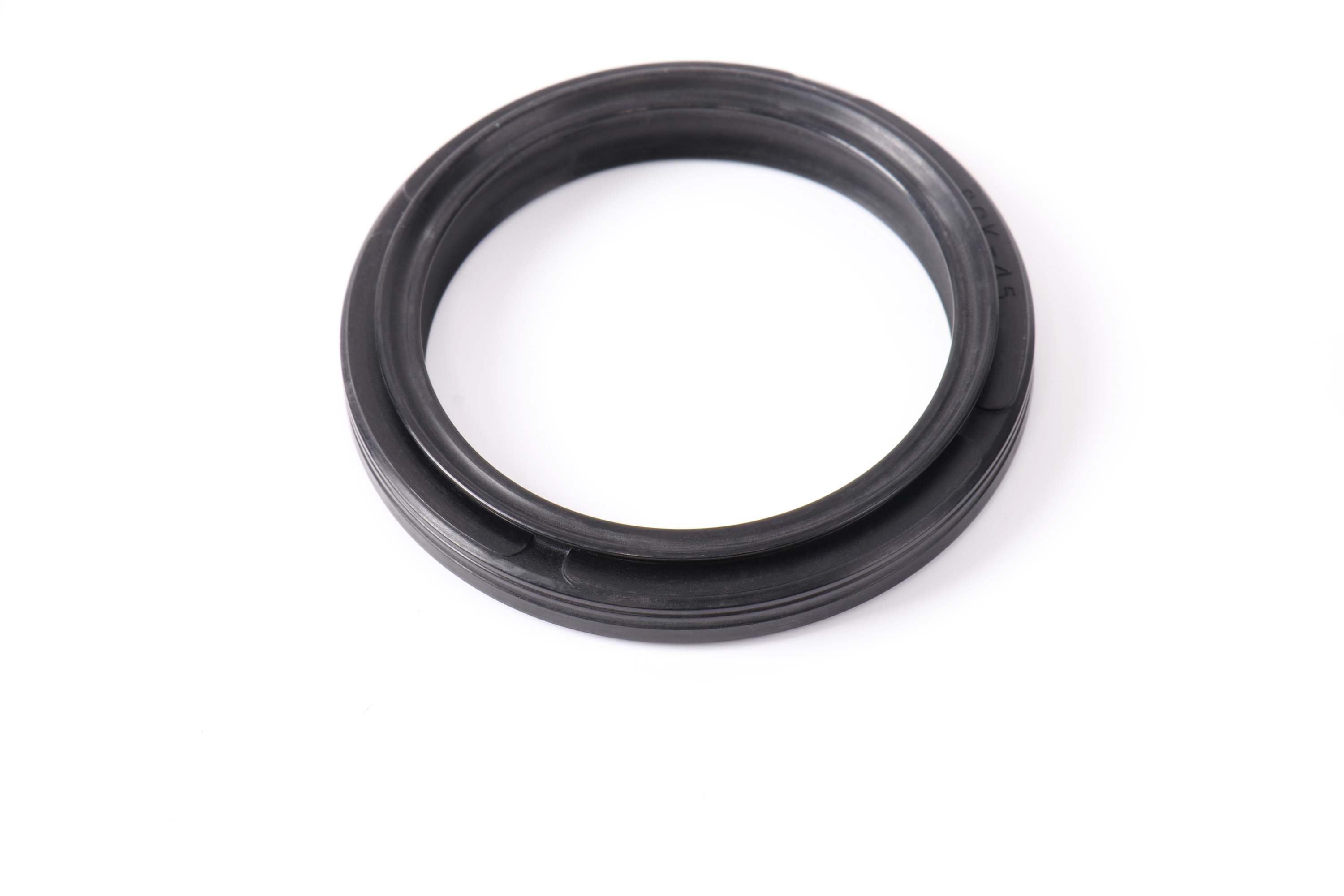

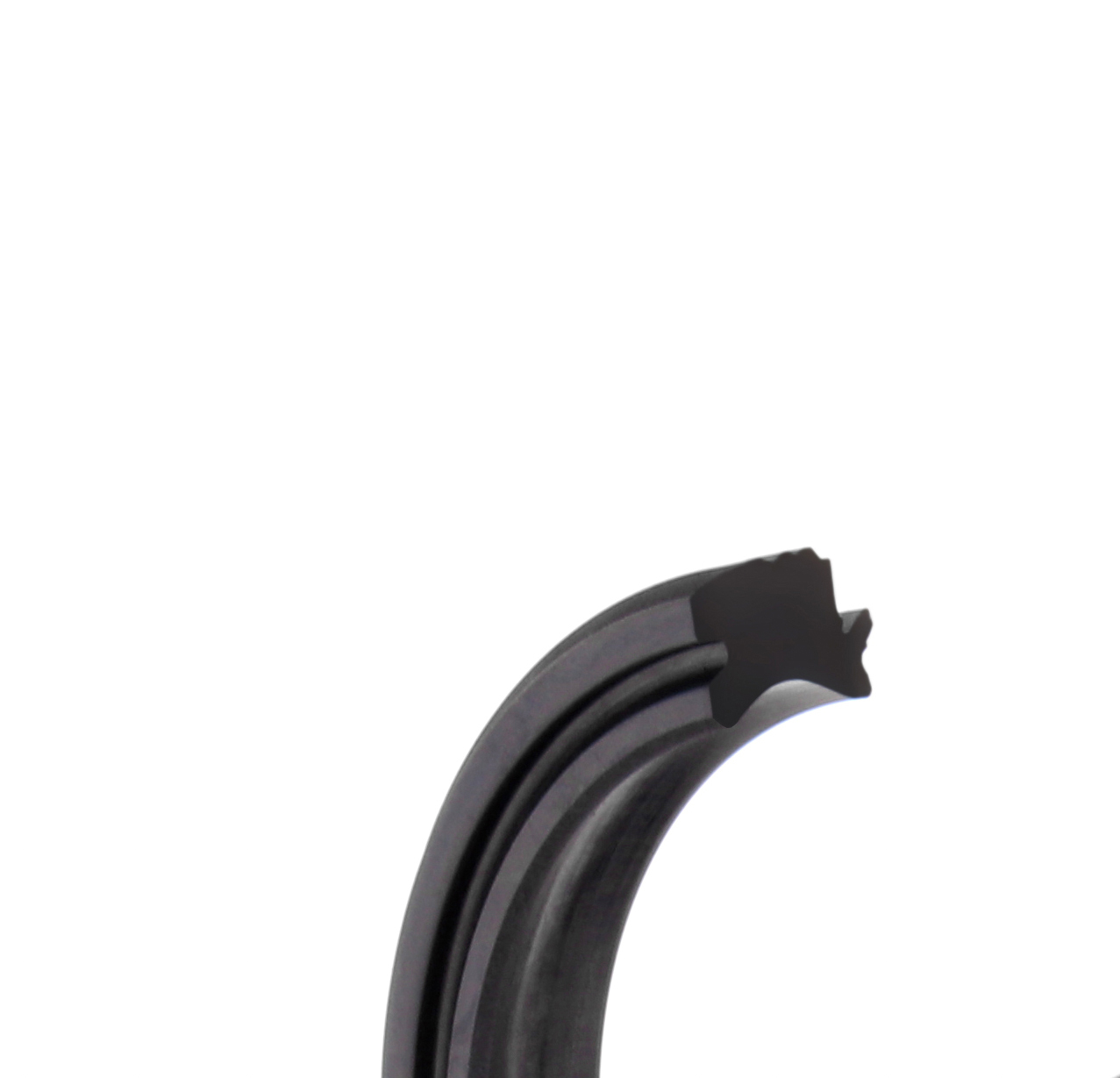

LBHK
防尘密封
优势与特点
LBHK防尘密封是双作用的防尘密封，独特的结构设计，增加一道防尘唇紧贴沟槽，有效阻止外界的细小污染物进入油缸内部。防尘效果优于LBH。
LBHK防尘密封可以手工挤压后装入沟槽，安装便利，无需工具。
材料：
颜色：
数量：
技术与参数
技术参数
| 材料 | 温度 | 压力 | 线速度 | 颜色 |
| NBR | -40°C ~ 135°C | <300 | <0.5 | 黑 |

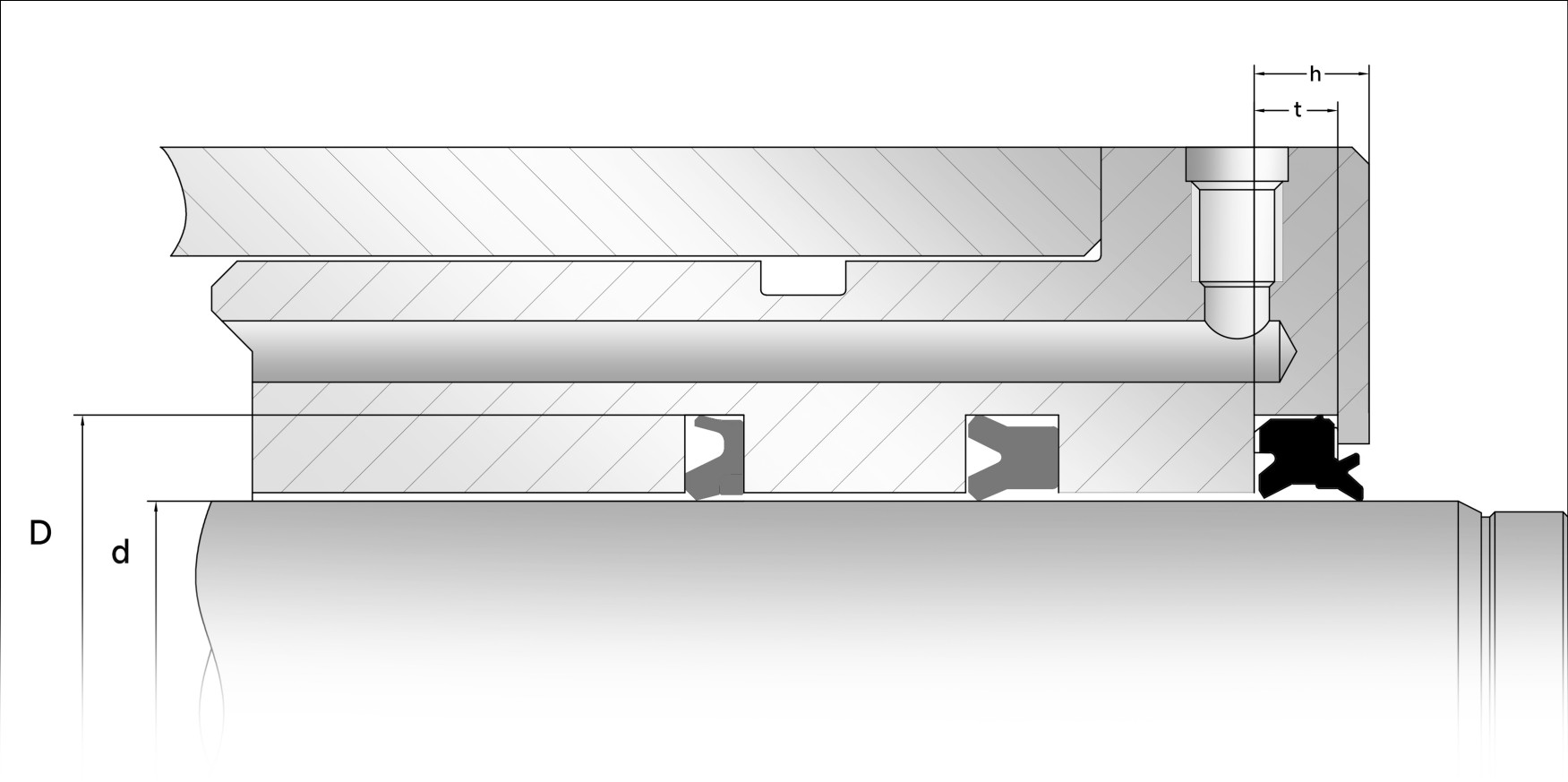

CAD应用图
尺寸规格
| Specification | D | d | t | H |
| LBHK 14x24x4.8/6.7 | 14 | 24 | 4.8 | 6.7 |
| LBHK 18x30x5.8/7.8 | 18 | 30 | 5.8 | 7.8 |
| LBHK 20x32x5.8/7.8 | 20 | 32 | 5.8 | 7.8 |
| LBHK 25x37x5.8/7.8 | 25 | 37 | 5.8 | 7.8 |
| LBHK 28x40x5.8/7.8 | 28 | 40 | 5.8 | 7.8 |
| LBHK 30x42x5.8/7.8 | 30 | 42 | 5.8 | 7.8 |
| LBHK 31.5x44x6.8/8.8 | 31.5 | 44 | 6.8 | 8.8 |
| LBHK 35x47x6.8/8.8 | 35 | 47 | 6.8 | 8.8 |
| LBHK 35.5x47.5x6.8/8.8 | 35.5 | 47.5 | 6.8 | 8.8 |
| LBHK 40x52x6.8/8.8 | 40 | 52 | 6.8 | 8.8 |
| LBHK 45x57x6.8/8.8 | 45 | 57 | 6.8 | 8.8 |
| LBHK 50x62x6.8/8.8 | 50 | 62 | 6.8 | 8.8 |
| LBHK 55x69x7.7/10 | 55 | 69 | 7.7 | 10 |
| LBHK 56x70x7.7/10 | 56 | 70 | 7.7 | 10 |
| LBHK 60x74x7.7/10 | 60 | 74 | 7.7 | 10 |
| LBHK 63x77x7.7/10 | 63 | 77 | 7.7 | 10 |
| LBHK 65x79x7.7/10 | 65 | 79 | 7.7 | 10 |
| LBHK 70x84x7.7/10 | 70 | 84 | 7.7 | 10 |
| LBHK 71x85x7.7/10 | 71 | 85 | 7.7 | 10 |
| LBHK 75x89x7.7/10 | 75 | 89 | 7.7 | 10 |
| LBHK 80x94x7.7/10 | 80 | 94 | 7.7 | 10 |
| LBHK 85x99x7.7/10 | 85 | 99 | 7.7 | 10 |
| LBHK 90x104x7.7/10 | 90 | 104 | 7.7 | 10 |
| LBHK 95x109x7.7/10 | 95 | 109 | 7.7 | 10 |
| LBHK 100x114x7.7/10 | 100 | 114 | 7.7 | 10 |
| LBHK 105x121x8.7/11.4 | 105 | 121 | 8.7 | 11.4 |
| LBHK 106x120x7.7/10 | 106 | 120 | 7.7 | 10 |
| LBHK 110x126x8.7/11.4 | 110 | 126 | 8.7 | 11.4 |
| LBHK 112x128x8.7/11.4 | 112 | 128 | 8.7 | 11.4 |
| LBHK 115x131x8.7/11.4 | 115 | 131 | 8.7 | 11.4 |
| LBHK 118x134x8.7/11.4 | 118 | 134 | 8.7 | 11.4 |
| LBHK 120x136x8.7/11.4 | 120 | 136 | 8.7 | 11.4 |
