DSI
防尘密封
优势与特点

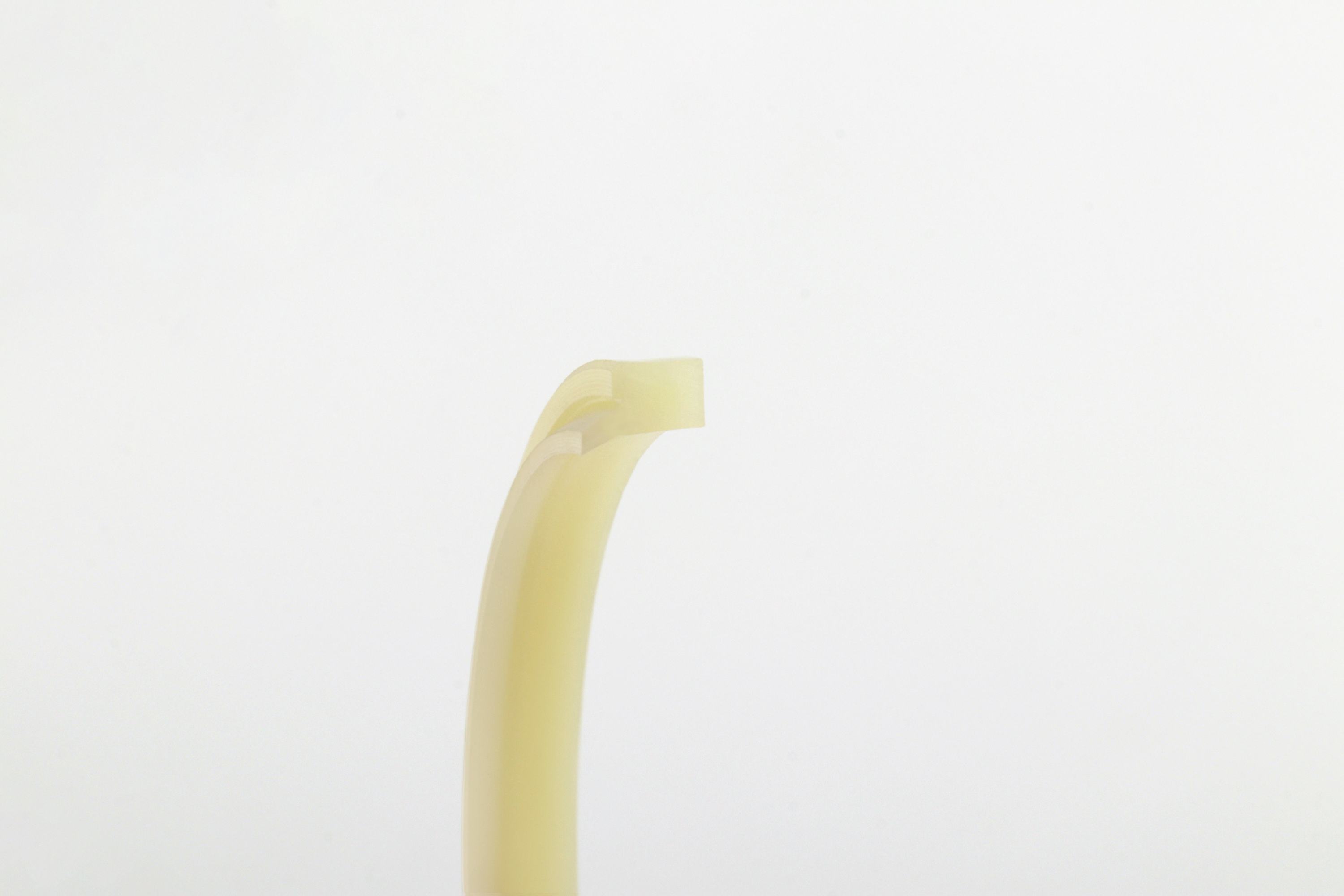

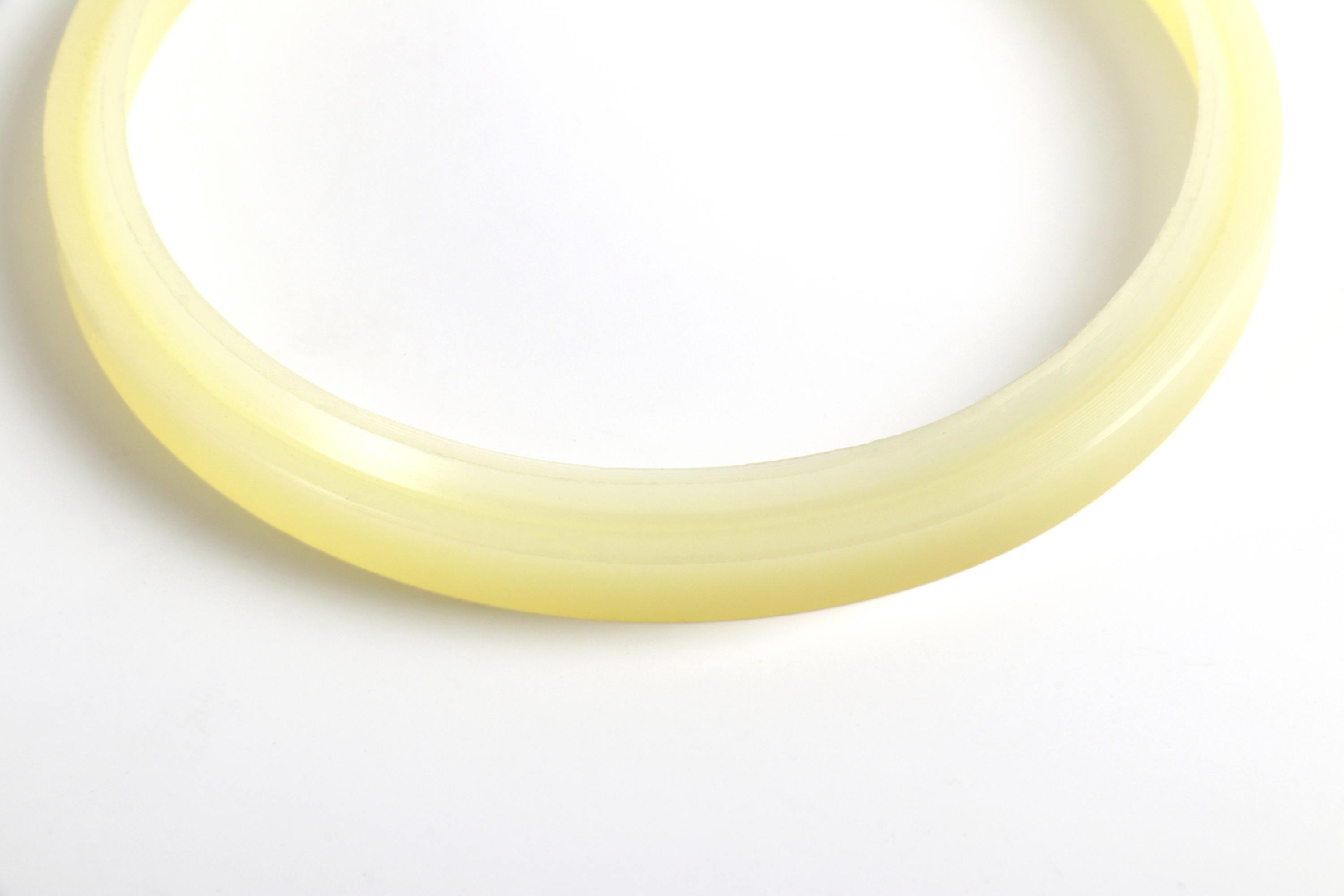

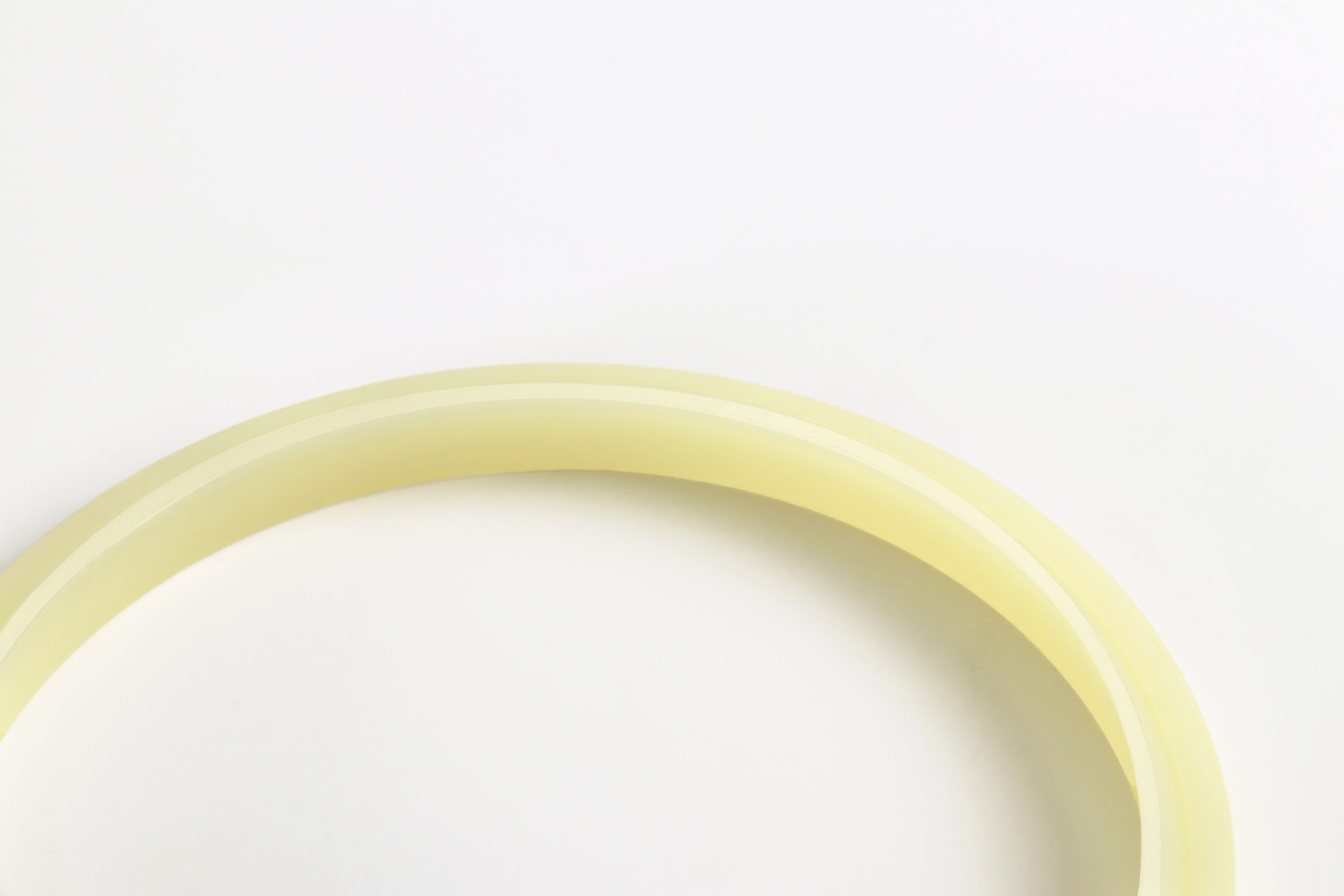

DSI防尘密封是单作用的防尘密封，有过盈量的外径设计可以保证防尘圈外围紧贴沟槽底，防止外界污染物进入油缸内部。
DSI适用于中低污染环境,如室内油压机、注塑机等。
材料：
TPU
颜色：
黄
数量：
技术与参数
技术参数
| 材料 | 温度 | 压力 | 线速度 | 颜色 |
| TPU | -30°C ~ 110°C | <300 | <0.8 | 黄 |

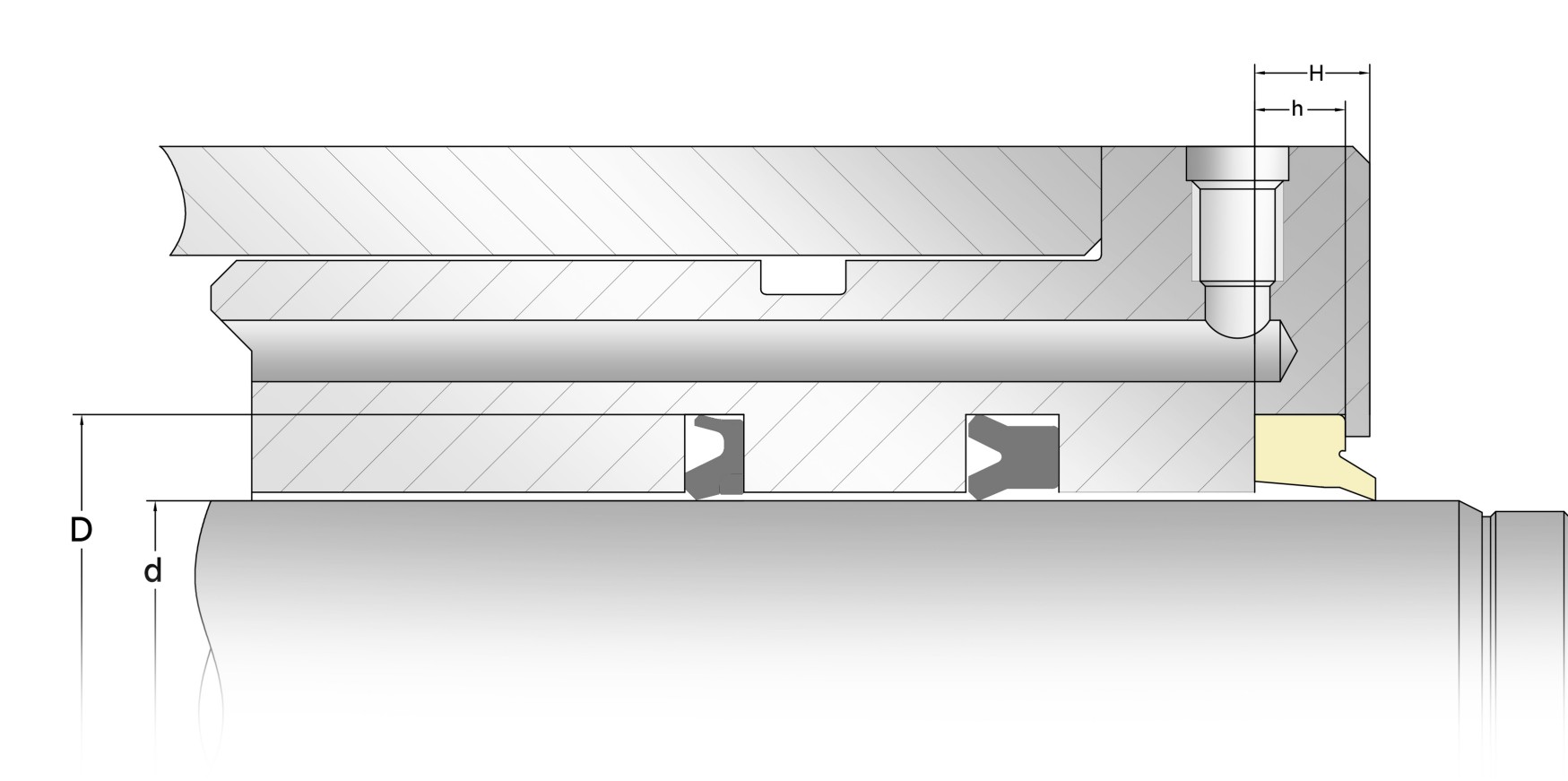

CAD应用图
尺寸规格
| Specification | d | D | h | H |
| DSI 20x28x4.5/6 | 20 | 28 | 4.5 | 6 |
| DSI 22.4x30.4x4.5/6 | 22.4 | 30.4 | 4.5 | 6 |
| DSI 23.5x31.5x4.5/6 | 23.5 | 31.5 | 4.5 | 6 |
| DSI 25x33x4.5/6 | 25 | 33 | 4.5 | 6 |
| DSI 28x36x4.5/6 | 28 | 36 | 4.5 | 6 |
| DSI 30x38x5/6.5 | 30 | 38 | 5 | 6.5 |
| DSI 31.5x39.5x5/6.5 | 31.5 | 39.5 | 5 | 6.5 |
| DSI 35x43x5/6.5 | 35 | 43 | 5 | 6.5 |
| DSI 35.5x43.5x5/6.5 | 35.5 | 43.5 | 5 | 6.5 |
| DSI 40x48x5/6.5 | 40 | 48 | 5 | 6.5 |
| DSI 45x53x5/6.5 | 45 | 53 | 5 | 6.5 |
| DSI 45.5x53.5x5/6.5 | 45.5 | 53.5 | 5 | 6.5 |
| DSI 50x58x5/6.5 | 50 | 58 | 5 | 6.5 |
| DSI 53x61x5/6.5 | 53 | 61 | 5 | 6.5 |
| DSI 54.5x62.5x5/6.5 | 54.5 | 62.5 | 5 | 6.5 |
| DSI 55x63x5/6.5 | 55 | 63 | 5 | 6.5 |
| DSI 56x64x5/6.5 | 56 | 64 | 5 | 6.5 |
| DSI 60x68x5/6.5 | 60 | 68 | 5 | 6.5 |
| DSI 60x70x5/6.5 | 60 | 70 | 5 | 6.5 |
| DSI 62x70x5/6.5 | 62 | 70 | 5 | 6.5 |
| DSI 63x71x5/6.5 | 63 | 71 | 5 | 6.5 |
| DSI 65x73x5/6.5 | 65 | 73 | 5 | 6.5 |
| DSI 65x75x5/6.5 | 65 | 75 | 5 | 6.5 |
| DSI 70x80x6/8 | 70 | 80 | 6 | 8 |
| DS171x81x6/8 | 71 | 81 | 6 | 8 |
| DS175x85x6/8 | 75 | 85 | 6 | 8 |
| DS176x86x6/8 | 76 | 86 | 6 | 8 |
| DSI 80x90x6/8 | 80 | 90 | 6 | 8 |
| DSI 85x95x6/8 | 85 | 95 | 6 | 8 |
| DSI90x100x6/8 | 90 | 100 | 6 | 8 |
| DSI 95105x6/8 | 95 | 105 | 6 | 8 |
| DSI 100x110x6/8 | 100 | 110 | 6 | 8 |
| DSI 105115x6/8 | 105 | 115 | 6 | 8 |
| DSI 110x120x6/8 | 110 | 120 | 6 | 8 |
| DSI 118x128x6/8 | 118 | 128 | 6 | 8 |
| DSI 120x130x6/8 | 120 | 130 | 6 | 8 |
| DSI125x138x7/9.5 | 125 | 138 | 7 | 9.5 |
| DSI 130x143x7/9.5 | 130 | 143 | 7 | 9.5 |
| DSI 132x145x7/9.5 | 132 | 145 | 7 | 9.5 |
| DSI 135x148x7/9.5 | 135 | 148 | 7 | 9.5 |
| DSI 140x153x7/9.5 | 140 | 153 | 7 | 9.5 |
| DSI 145x158x7/9.5 | 145 | 158 | 7 | 9.5 |
| DSI 150x163x7/9.5 | 150 | 163 | 7 | 9.5 |
| DSI 155x168x7/9.5 | 155 | 168 | 7 | 9.5 |
| DSI 160x173x7/9.5 | 160 | 173 | 7 | 9.5 |
| DSI 170x183x7/9.5 | 170 | 183 | 7 | 9.5 |
| DSI 175x188x7/9.5 | 175 | 188 | 7 | 9.5 |
| DSI 180x193x7/9.5 | 180 | 193 | 7 | 9.5 |
