LBI
防尘密封
优势与特点
LBI防尘密封可以手工挤压后装入沟槽，安装便利，无需工具。
LBI防尘密封是双作用的防尘密封。密封唇在满足刮尘的前提下，不会破坏活塞杆上附着的油膜，不会产生无油润滑故障。LBI适用于中低污染工况，如:吊车的水平支腿油缸、伸缩油缸等。
材料：
TPU
颜色：
黄
数量：
技术与参数
技术参数
| 材料 | 温度 | 压力 | 线速度 | 颜色 |
| TPU | -30°C ~ 100°C | <300 | <0.8 | 黄 |

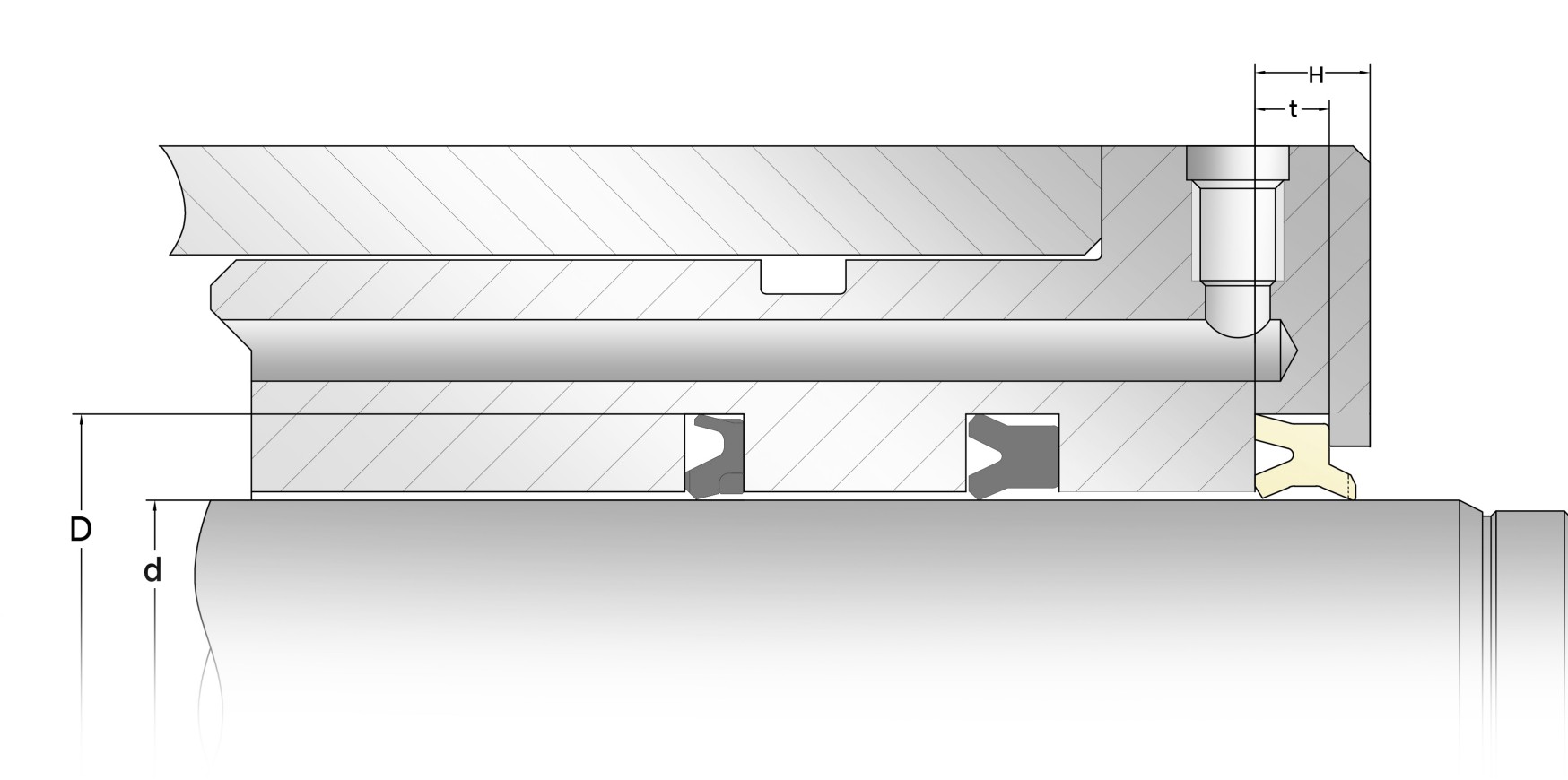

CAD应用图
尺寸规格
| Specification | d | D | h | H |
| LBI 11.2x19.2x4.5/6 | 11.2 | 19.2 | 4.5 | 6 |
| LBI 12x20x4.5/6 | 12 | 20 | 4.5 | 6 |
| LBI 12.5x20.5x4.5/6 | 12.5 | 20.5 | 4.5 | 6 |
| LBI 14x22x4.5/6 | 14 | 22 | 4.5 | 6 |
| LBI 16x24x4.5/6 | 16 | 24 | 4.5 | 6 |
| LBI 18x26x4.5/6 | 18 | 26 | 4.5 | 6 |
| LBI 20x28x4.5/6 | 20 | 28 | 4.5 | 6 |
| LBI 22x30x4.5/6 | 22 | 30 | 4.5 | 6 |
| LBI 22.4x30.4x4.5/6 | 22.4 | 30.4 | 4.5 | 6 |
| LBI 25x33x4.5/6 | 25 | 33 | 4.5 | 6 |
| LBI 26x34x4.5/6 | 26 | 34 | 4.5 | 6 |
| LBI 28x36x4.5/6 | 28 | 36 | 4.5 | 6 |
| LBI 30x38x5/6.5 | 30 | 38 | 5 | 6.5 |
| LBI 31.5x39.5x5/6.5 | 31.5 | 39.5 | 5 | 6.5 |
| LBI 32x40x5/6.5 | 32 | 40 | 5 | 6.5 |
| LBI 34x42x5/6.5 | 34 | 42 | 5 | 6.5 |
| LBI 35x43x5/6.5 | 35 | 43 | 5 | 6.5 |
| LBI 35.5x43.5x5/6.5 | 35.5 | 43.5 | 5 | 6.5 |
| LBI 36x44x5/6.5 | 36 | 44 | 5 | 6.5 |
| LBI 38x46x5/6.5 | 38 | 46 | 5 | 6.5 |
| LBI 40x48x5/6.5 | 40 | 48 | 5 | 6.5 |
| LBI 45x53x5/6.5 | 45 | 53 | 5 | 6.5 |
| LBI 46x54x5/6.5 | 46 | 54 | 5 | 6.5 |
| LBI 48x56x5/6.5 | 48 | 56 | 5 | 6.5 |
| LBI 50x58x5/65 | 50 | 58 | 5 | 6.5 |
| LBI 53x61x5/6.5 | 53 | 61 | 5 | 6.5 |
| LBI 55x63x5/6.5 | 55 | 63 | 5 | 6.5 |
| LBI 56x64x5/65 | 56 | 64 | 5 | 6.5 |
| LBI 58x66x5/6.5 | 58 | 66 | 5 | 6.5 |
| LBI 60x68x5/6.5 | 60 | 68 | 5 | 6.5 |
| LBI 63x71x5/6.5 | 63 | 71 | 5 | 6.5 |
| LBI 65x73x5/6.5 | 65 | 73 | 5 | 6.5 |
| LBI 67x75x5/6.5 | 67 | 75 | 5 | 6.5 |
| LBI 70x80x6/8 | 70 | 80 | 6 | 8 |
| LBI 71x81x6/8 | 71 | 81 | 6 | 8 |
| LBI 75x85x6/8 | 75 | 85 | 6 | 8 |
| LBI 80x90x6/8 | 80 | 90 | 6 | 8 |
| LBI 85x95x6/8 | 85 | 95 | 6 | 8 |
| LBI 90x100x6/8 | 90 | 100 | 6 | 8 |
| LBI 95x105x6/8 | 95 | 105 | 6 | 8 |
| LBI 98x108x6/8 | 98 | 108 | 6 | 8 |
| LBI 100x110x6/8 | 100 | 110 | 6 | 8 |
| LBI 105x115x6/8 | 105 | 115 | 6 | 8 |
| LBI 110x120x6/8 | 110 | 120 | 6 | 8 |
| LBI 112x122x6/8 | 112 | 122 | 6 | 8 |
| LBI 115x125x6/8 | 115 | 125 | 6 | 8 |
| LBI 118x128x6/8 | 118 | 128 | 6 | 8 |
| LBI 120x133x7/9.5 | 120 | 133 | 7 | 9.5 |
| LBI 125x138x7/9.5 | 125 | 138 | 7 | 9.5 |
| LBI 130x143x7/9.5 | 130 | 143 | 7 | 9.5 |
| LBI 135x148x7/9.5 | 135 | 148 | 7 | 9.5 |
| LBI 136x149x7/9.5 | 136 | 149 | 7 | 9.5 |
| LBI 140x153x7/9.5 | 140 | 153 | 7 | 9.5 |
| LBI 145x158x7/9.5 | 145 | 158 | 7 | 9.5 |
| LBI 150x163x7/9.5 | 150 | 163 | 7 | 9.5 |
| LBI 155x168x7/9.5 | 155 | 168 | 7 | 9.5 |
| LBI 160x173x7/9.5 | 160 | 173 | 7 | 9.5 |
| LBI 165x178x7/9.5 | 165 | 178 | 7 | 9.5 |
| LBI 170x183x7/9.5 | 170 | 183 | 7 | 9.5 |
| LBI 180x193x7/9.5 | 180 | 193 | 7 | 9.5 |
| LBI 185x198x7/9.5 | 185 | 198 | 7 | 9.5 |
| LBI 190x203x7/9.5 | 190 | 203 | 7 | 9.5 |
| LBI 200x213x7/9.5 | 200 | 213 | 7 | 9.5 |
| LBI 204x217x7/9.5 | 204 | 217 | 7 | 9.5 |
| LBI 210x223x7/9.5 | 210 | 223 | 7 | 9.5 |
| LBI 212x225x7/9.5 | 212 | 225 | 7 | 9.5 |
| LBI 220x233x7/9.5 | 220 | 233 | 7 | 9.5 |
| LBI 224x237x7/9.5 | 224 | 237 | 7 | 9.5 |
| LBI 230x243x7/9.5 | 230 | 243 | 7 | 9.5 |
| LBI 240x253x7/9.5 | 240 | 253 | 7 | 9.5 |
| LBI 250x265x9/11.5 | 250 | 265 | 9 | 11.5 |
