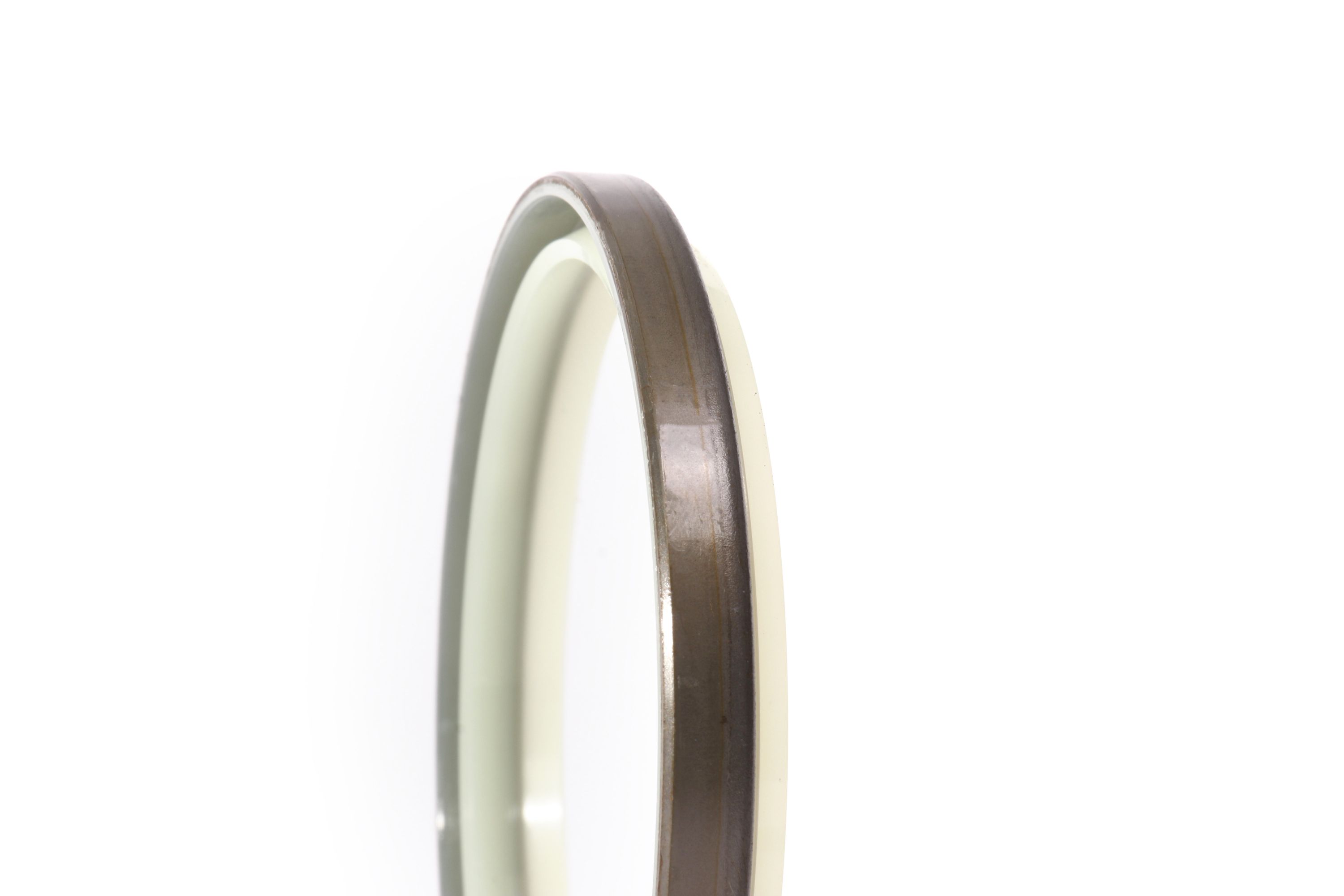

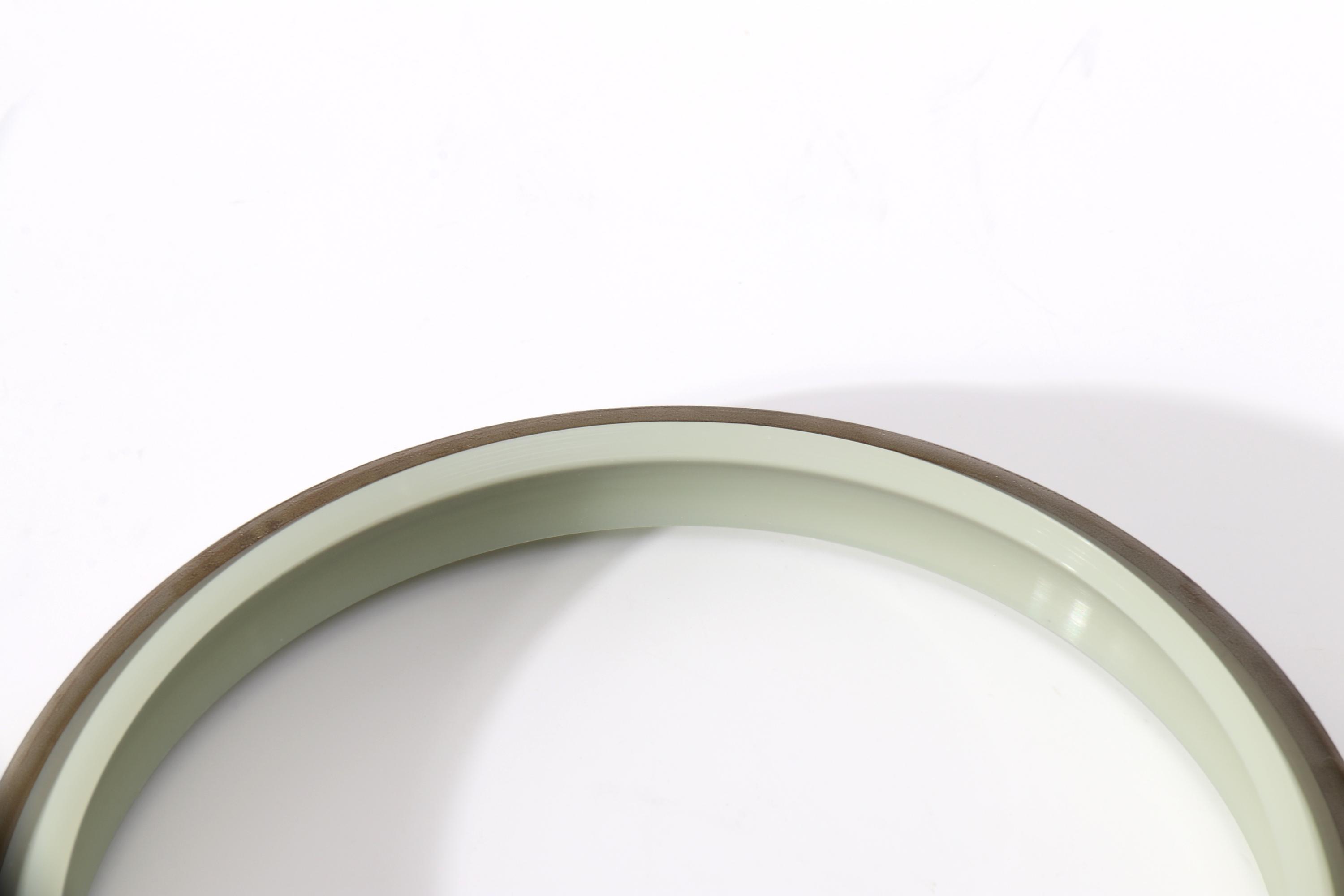

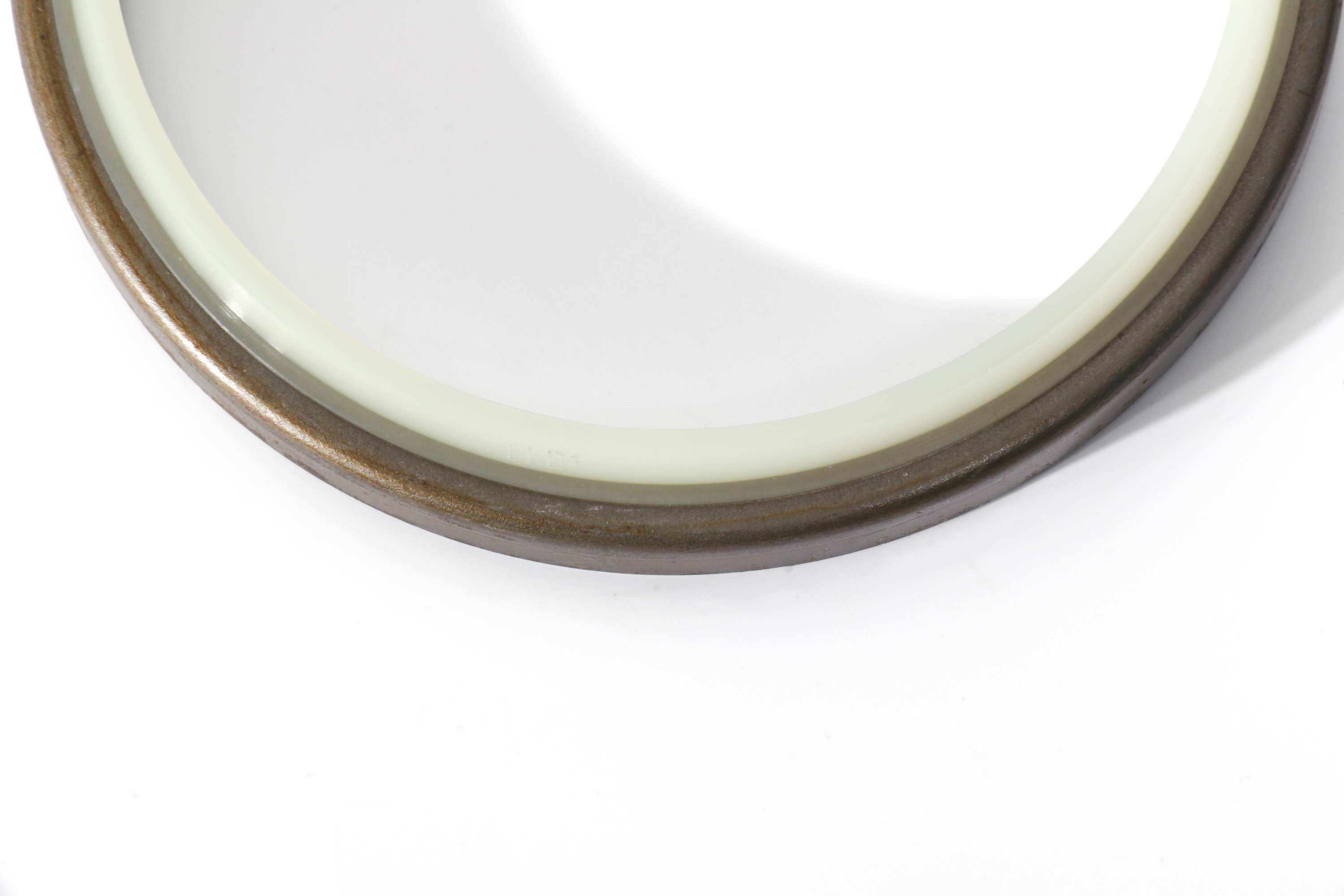

DKBI
防尘密封
优势与特点
DKBI是双作用防尘密封，通过金属骨架与沟槽的过盈配合，能牢靠地固定在开放的沟槽中。
DKBI广泛应用于污染严重的外部环境、防尘性能高要求的场合，比如：挖掘机、装载机、旋挖转机、农用机械等。
材料：
TPU
颜色：
黄
数量：
技术与参数
技术参数
| 材料 | 温度 | 压力 | 线速度 | 颜色 |
| TPU+METSL | -30°C ~ 110°C | <400 | <0.8 | 橙 |

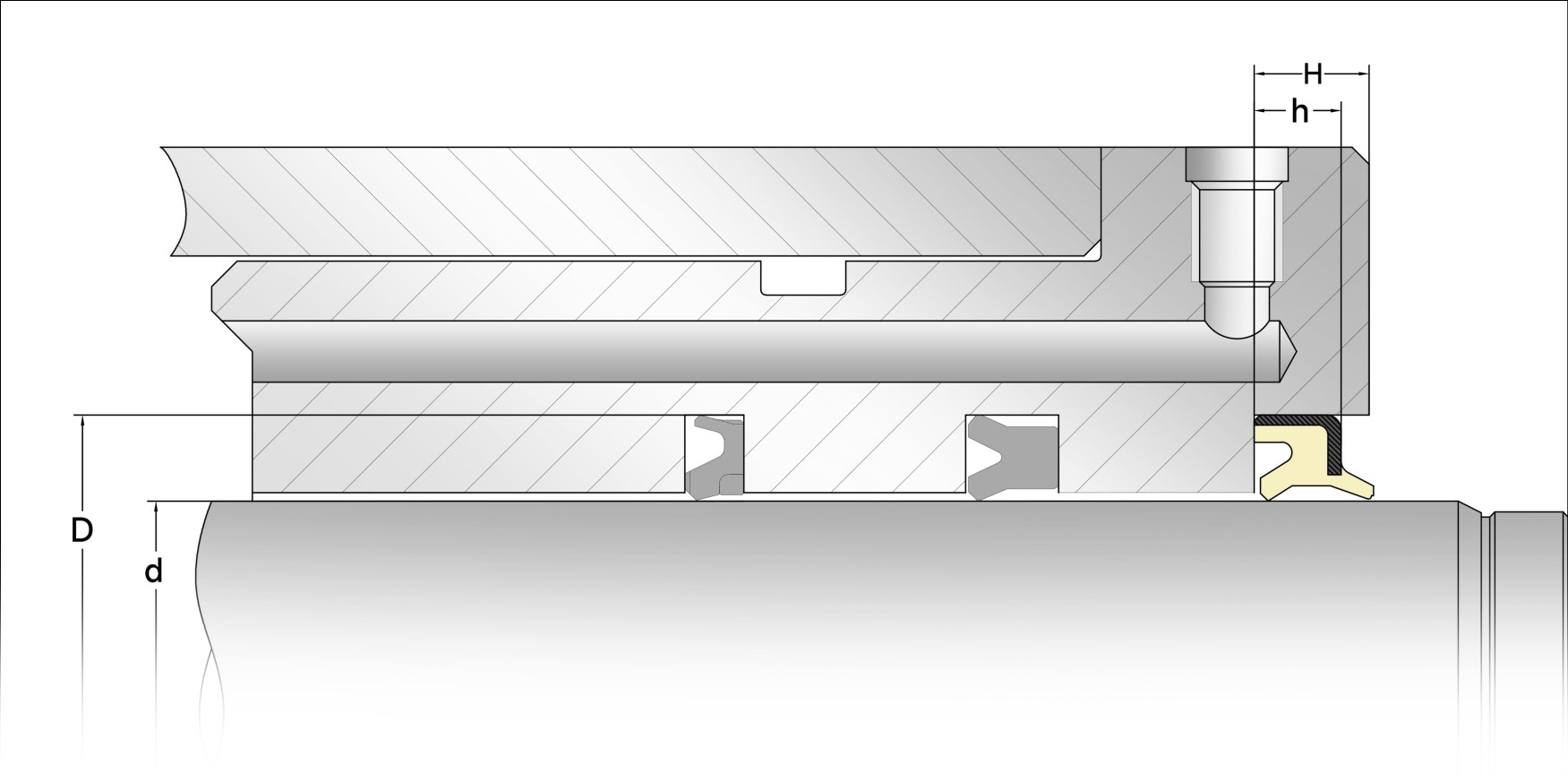

CAD应用图
尺寸规格
| Specification | d | D | h | H |
| DKBI 10x20x5/8.3 | 10 | 20 | 5 | 8.3 |
| DKBI 14x24x5/7 | 14 | 24 | 5 | 7 |
| DKBI 14x26x5/7 | 14 | 26 | 5 | 7 |
| DKBI 18x30x6/9 | 18 | 30 | 6 | 9 |
| DKBI 19x31x6/9 | 19 | 31 | 6 | 9 |
| DKBI 20x32x6/9 | 20 | 32 | 6 | 9 |
| DKBI 22x34x6/9 | 22 | 34 | 6 | 9 |
| DKBI 25x37x6/9 | 25 | 37 | 6 | 9 |
| DKBI 28x40x6/9 | 28 | 40 | 6 | 9 |
| DKBI 30x42x6/9 | 30 | 42 | 6 | 9 |
| DKBI 30x45x6/9 | 30 | 45 | 6 | 9 |
| DKBI 31.5x44x7/10 | 31.5 | 44 | 7 | 10 |
| DKBI 32x44x7/10 | 32 | 44 | 7 | 10 |
| DKBI 32x52x7/10 | 32 | 52 | 7 | 10 |
| DKBI 35x47x7/10 | 35 | 47 | 7 | 10 |
| DKBI 36x48x7/10 | 36 | 48 | 7 | 10 |
| DKBI 40x50x7/10 | 40 | 50 | 7 | 10 |
| DKBI 40x52x7/10 | 40 | 52 | 7 | 10 |
| DKBI 45x57x7/10 | 45 | 57 | 7 | 10 |
| DKBI 50x62x7/10 | 50 | 62 | 7 | 10 |
| DKBI 50x72x8/11 | 50 | 72 | 8 | 11 |
| DKBI 55x69x8/11 | 55 | 69 | 8 | 11 |
| DKBI 56x70x8/11 | 56 | 70 | 8 | 11 |
| DKBI 60x74x8/11 | 60 | 74 | 8 | 11 |
| DKBI 63x77x8/11 | 63 | 77 | 8 | 11 |
| DKBI 65x79x8/11 | 65 | 79 | 8 | 11 |
| DKBI 70x84x8/11 | 70 | 84 | 8 | 11 |
| DKBI 75x89x8/11 | 75 | 89 | 8 | 11 |
| DKBI 80x94x8/11 | 80 | 94 | 8 | 11 |
| DKBI 85x99x8/11 | 85 | 99 | 8 | 11 |
| DKBI 90x104x8/11 | 90 | 104 | 8 | 11 |
| DKBI 95x109x8/11 | 95 | 109 | 8 | 11 |
| DKBI 100x114x8/11 | 100 | 114 | 8 | 11 |
| DKBI 105x121x9/12 | 105 | 121 | 9 | 12 |
| DKBI 110x126x9/12 | 110 | 126 | 9 | 12 |
| DKBI 112x128x9/12 | 112 | 128 | 9 | 12 |
| DKBI 115x131x9/12 | 115 | 131 | 9 | 12 |
| DKBI 120x136x9/12 | 120 | 136 | 9 | 12 |
| DKBI 125x141x9/12 | 125 | 141 | 9 | 12 |
| DKBI 130x146x9/12 | 130 | 146 | 9 | 12 |
| DKBI 135x145x10/14 | 135 | 145 | 10 | 14 |
| DKBI 140x160x10/14 | 140 | 160 | 10 | 14 |
| DKBI 145x165x10/14 | 145 | 165 | 10 | 14 |
| DKBI 150x170x10/14 | 150 | 170 | 10 | 14 |
| DKBI 155x175x10/14 | 155 | 175 | 10 | 14 |
| DKBI 160x180x10/14 | 160 | 180 | 10 | 14 |
| DKBI 170x190x10/14 | 170 | 190 | 10 | 14 |
| DKBI 180x200x10/14 | 180 | 200 | 10 | 14 |
| DKBI 180x205x12/17 | 180 | 205 | 12 | 17 |
| DKBI 190x215x10/14 | 190 | 215 | 10 | 14 |
| DKBI 200x225x12/17 | 200 | 225 | 12 | 17 |
| DKBI 210x235x12/17 | 210 | 235 | 12 | 17 |
| DKBI 225x250x12/17 | 225 | 250 | 12 | 17 |
| DKBI 250x275x12/17 | 250 | 275 | 12 | 17 |
| DKBI 265x285x12/17 | 265 | 285 | 12 | 17 |
