技术与参数
技术参数
| 材料 | 温度 | 压力 | 线速度（米/秒） | 颜色 |
PTFE+NBR PTFE+FKM | -40° /+110° -30°/200° | <300 | <1.0 | 棕 |

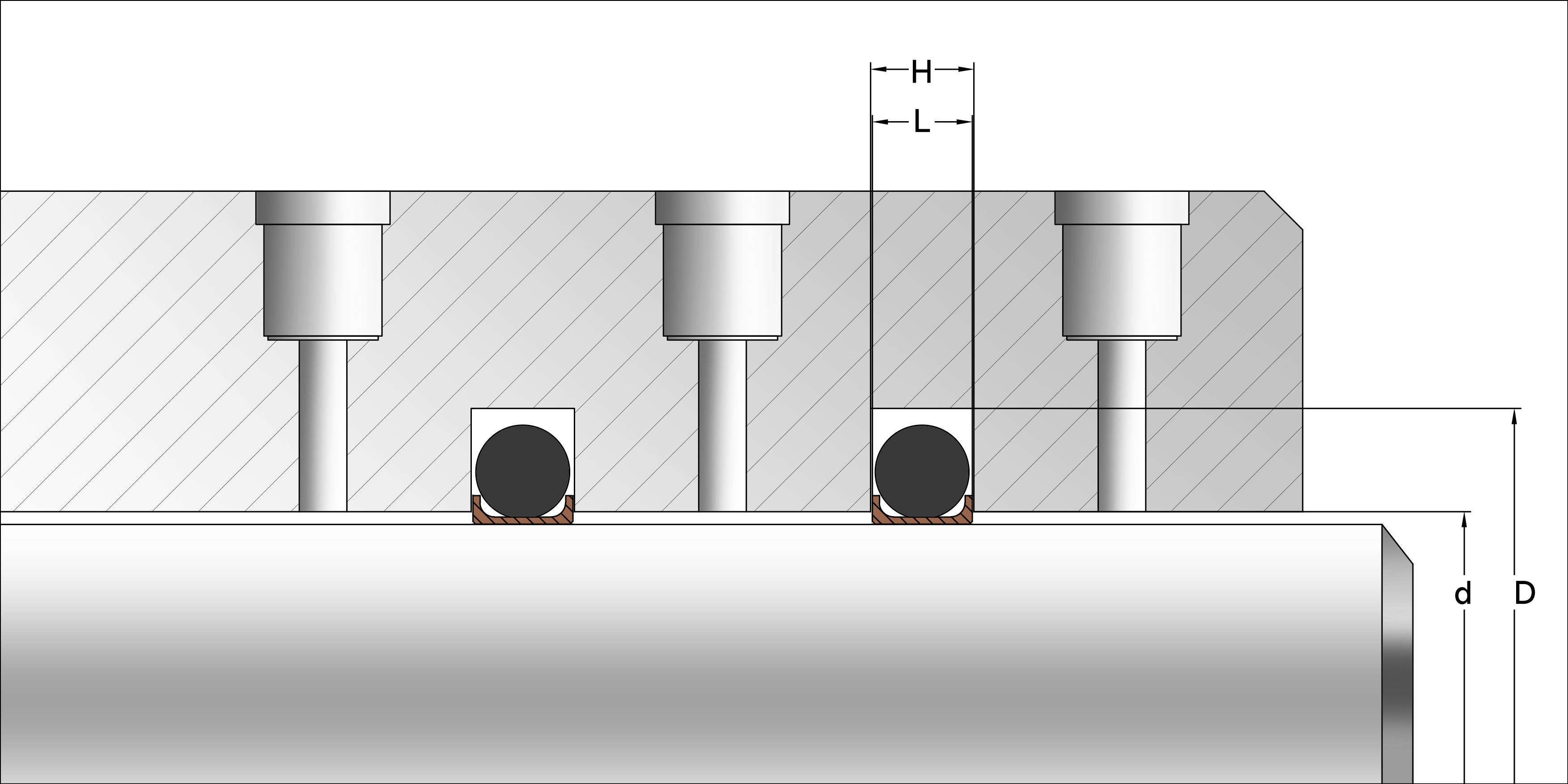

CAD应用图
尺寸规格
| Specification | d | D | h |
| SPNC 10x13x2.3 | 13 | 10 | 2.3 |
| SPNC 10x14x3 | 14 | 10 | 3 |
| SPNC 11x15x3 | 15 | 11 | 3 |
| SPNC 11.2x15.2x3 | 15.2 | 11.2 | 3 |
| SPNC 12x16x3 | 16 | 12 | 3 |
| SPNC 12.5x16.5x3 | 16.5 | 12.5 | 3 |
| SPNC 14x18x3 | 18 | 14 | 3 |
| SPNC 15x19x3 | 19 | 15 | 3 |
| SPNC 16x20x3 | 20 | 16 | 3 |
| SPNC 18x22x3 | 22 | 18 | 3 |
| SPNC 20x24x3 | 24 | 20 | 3 |
| SPNC 21x25x3 | 25 | 21 | 3 |
| SPNC 22x26x3 | 26 | 22 | 3 |
| SPNC 22.4x28.4x4.4 | 28.4 | 22.4 | 4.4 |
| SPNC 24x30x4.4 | 30 | 24 | 4.4 |
| SPNC 25x31x4.4 | 31 | 25 | 4.4 |
| SPNC 25.5x31.5x4.4 | 31.5 | 25.5 | 4.4 |
| SPNC 26x32x4.4 | 32 | 26 | 4.4 |
| SPNC 28x34x4.4 | 34 | 28 | 4.4 |
| SPNC 29x35x4.4 | 35 | 29 | 4.4 |
| SPNC 29.5x35.5x4.4 | 35.5 | 29.5 | 4.4 |
| SPNC 30x36x4.4 | 36 | 30 | 4.4 |
| SPNC 31x37x4.4 | 37 | 31 | 4.4 |
| SPNC 31.5x37.5x4.4 | 37.5 | 31.5 | 4.4 |
| SPNC 32x38x4.4 | 38 | 32 | 4.4 |
| SPNC 34x40x4.4 | 40 | 34 | 4.4 |
| SPNC 35x41x4.4 | 41 | 35 | 4.4 |
| SPNC 35.5x41.5x4.4 | 41.5 | 35.5 | 4.4 |
| SPNC 36x42x4.4 | 42 | 36 | 4.4 |
| SPNC 38x44x4.4 | 44 | 38 | 4.4 |
| SPNC 39x45x4.4 | 45 | 39 | 4.4 |
| SPNC 40x46x4.4 | 46 | 40 | 4.4 |
| SPNC 41x47x4.4 | 47 | 41 | 4.4 |
| SPNC 42x48x4.4 | 48 | 42 | 4.4 |
| SPNC 44x50x4.4x | 50 | 44 | 4.4 |
| SPNC 45x51x4.4 | 51 | 45 | 4.4 |
| SPNC 46x52x4.4 | 52 | 46 | 4.4 |
| SPNC 48x54x4.4 | 54 | 48 | 4.4 |
| SPNC 49x55x4.4 | 55 | 49 | 4.4 |
| SPNC 50x56x4.4 | 56 | 50 | 4.4 |
| SPNC 48Ax58x7 | 58 | 48A | 7 |
| SPNC 50Ax60x7 | 60 | 50A | 7 |
| SPNC 52x62x7 | 62 | 52 | 7 |
| SPNC 53x63x7 | 63 | 53 | 7 |
| SPNC 55x65x7 | 65 | 55 | 7 |
| SPNC 56x66x7 | 66 | 56 | 7 |
| SPNC 58x68x7 | 68 | 58 | 7 |
| SPNC 60x70x7 | 70 | 60 | 7 |
| SPNC 62x72x7 | 72 | 62 | 7 |
| SPNC 63x73x7 | 73 | 63 | 7 |
| SPNC 65x75x7 | 75 | 65 | 7 |
| SPNC 67x77x7 | 77 | 67 | 7 |
| SPNC 70x80x7 | 80 | 70 | 7 |
| SPNC 71x81x7 | 81 | 71 | 7 |
| SPNC 75x85x7 | 85 | 75 | 7 |
| SPNC 80x90x7 | 90 | 80 | 7 |
| SPNC 85x95x7 | 95 | 85 | 7 |
| SPNC 90x100x7 | 100 | 90 | 7 |
| SPNC 95x105x7 | 105 | 95 | 7 |
| SPNC 100x110x7 | 110 | 100 | 7 |
| SPNC 102x112x7 | 112 | 102 | 7 |
| SPNC 105x115x7 | 115 | 105 | 7 |
| SPNC 110x120x7 | 120 | 110 | 7 |
| SPNC 112x122x7 | 122 | 112 | 7 |
| SPNC 115x125x7 | 125 | 115 | 7 |
| SPNC 120x130x7 | 130 | 120 | 7 |
| SPNC 125x135x7 | 135 | 125 | 7 |
| SPNC 130x140x7 | 140 | 130 | 7 |
| SPNC 132x142x7 | 142 | 132 | 7 |
| SPNC 135x145x7 | 145 | 135 | 7 |
| SPNC 140x150x7 | 150 | 140 | 7 |
| SPNC 145x155x7 | 155 | 145 | 7 |
| SPNC 150x160x7 | 160 | 150 | 7 |
