WR
支撑导向环
优势与特点
该产品适用于液压缸，起支撑导向作用。
材料：
Phenolic resin Fabric
颜色：
棕
数量：
价格询盘
WR (1)

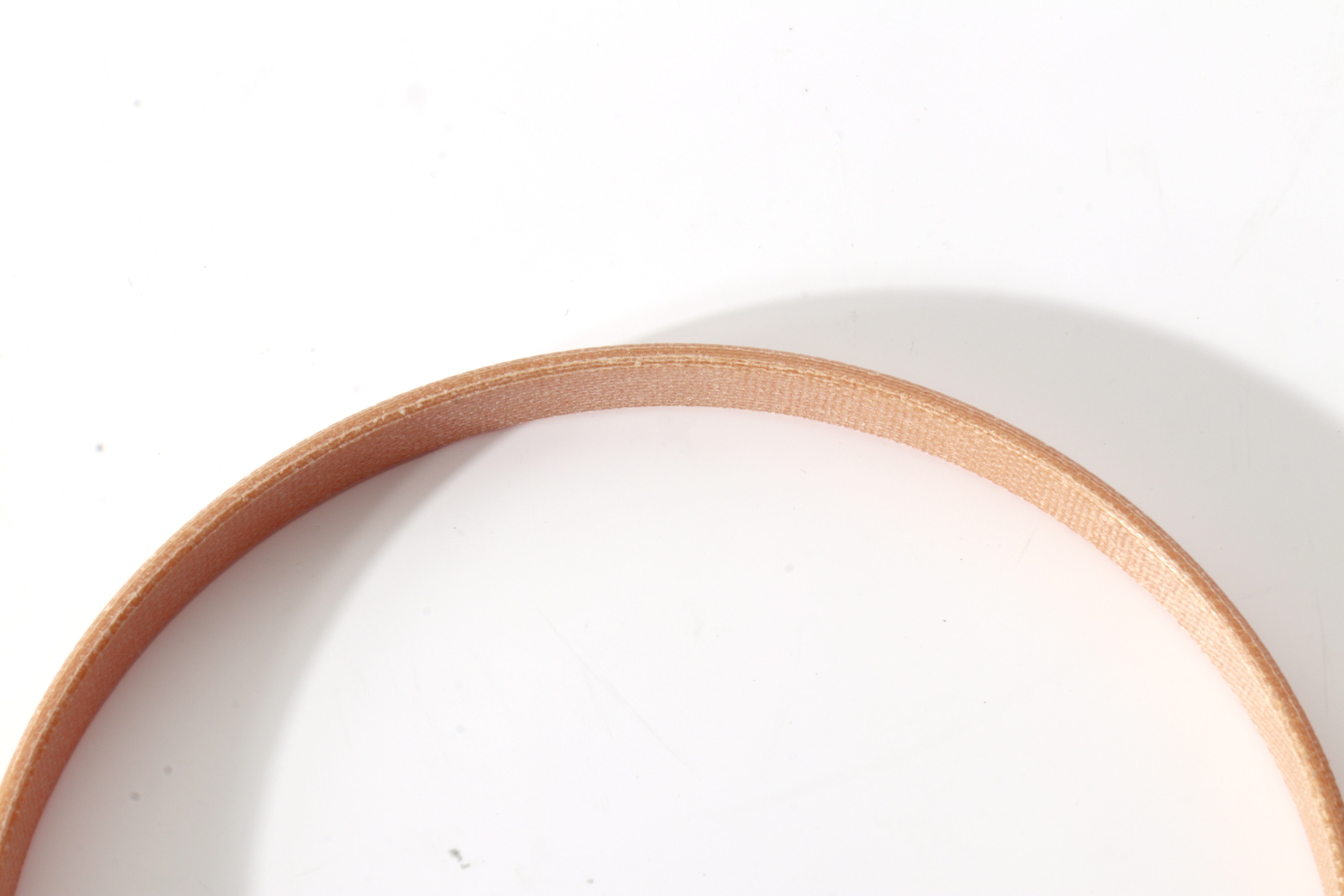

WR (2)

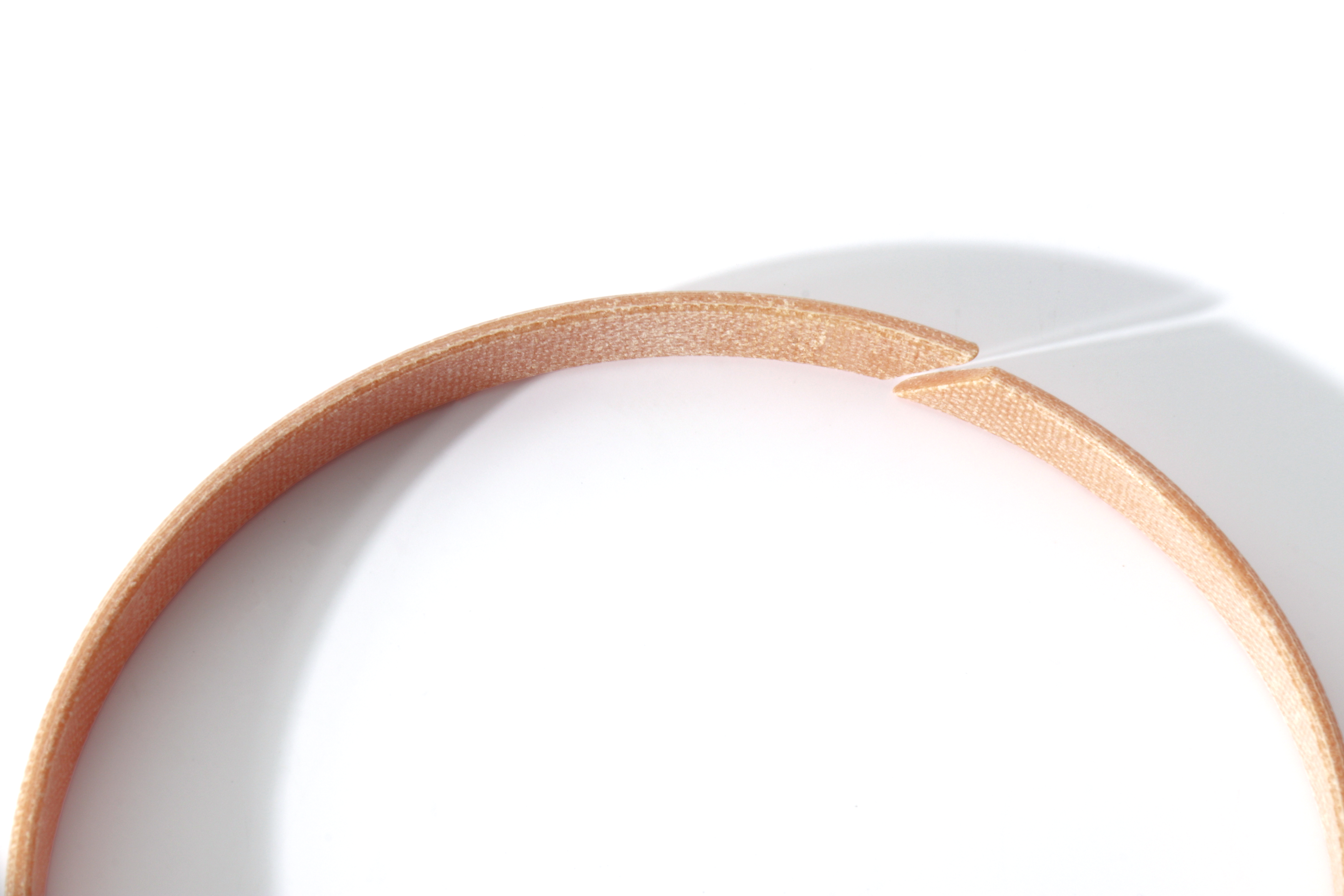

WR (3)

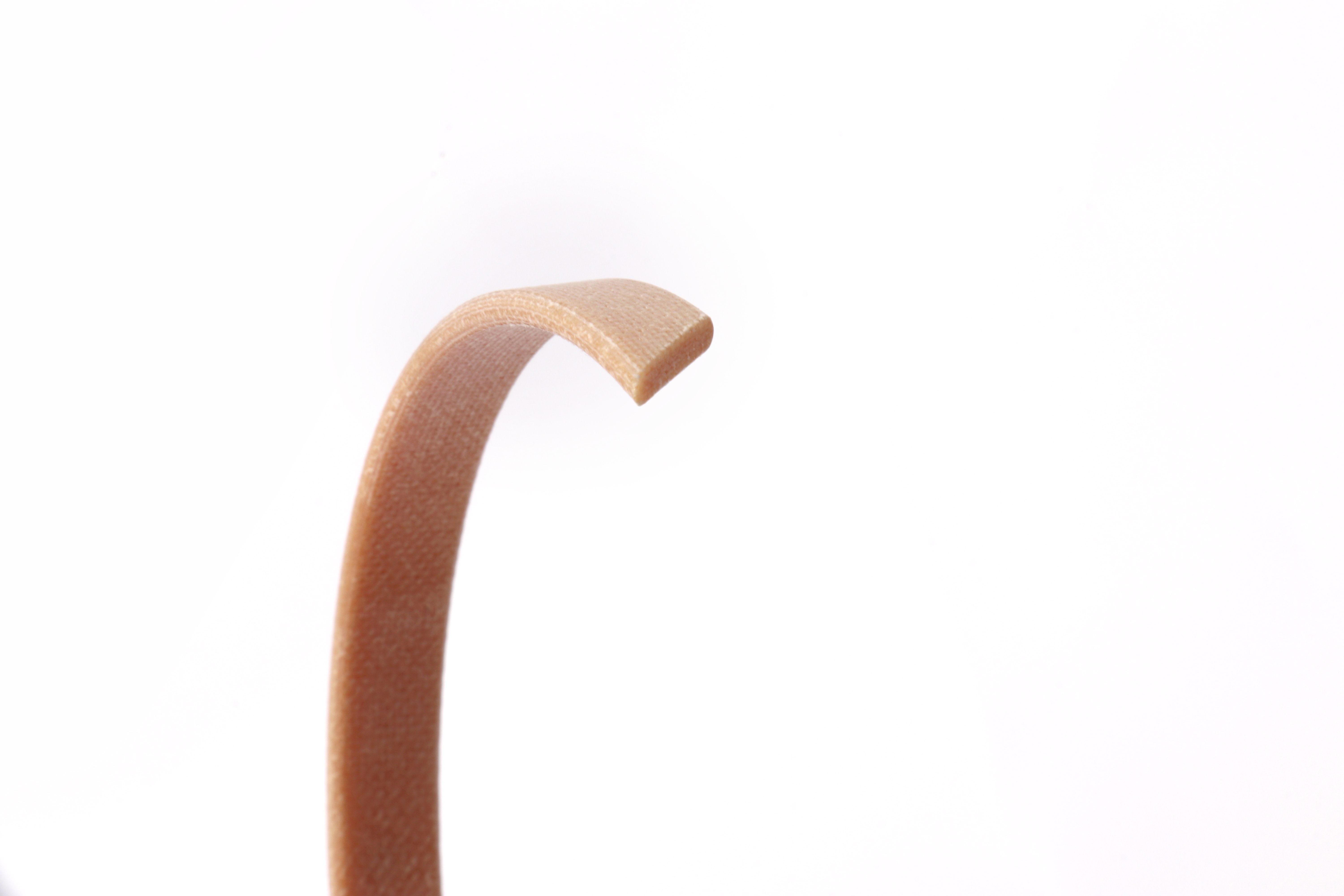

WR (4)
WR (1)
WR (2)
WR (3)
WR (4)
技术与参数
技术参数
材料温度压力线速度颜色
Phenolic resin Fabric-60° +125°<800<1.0棕

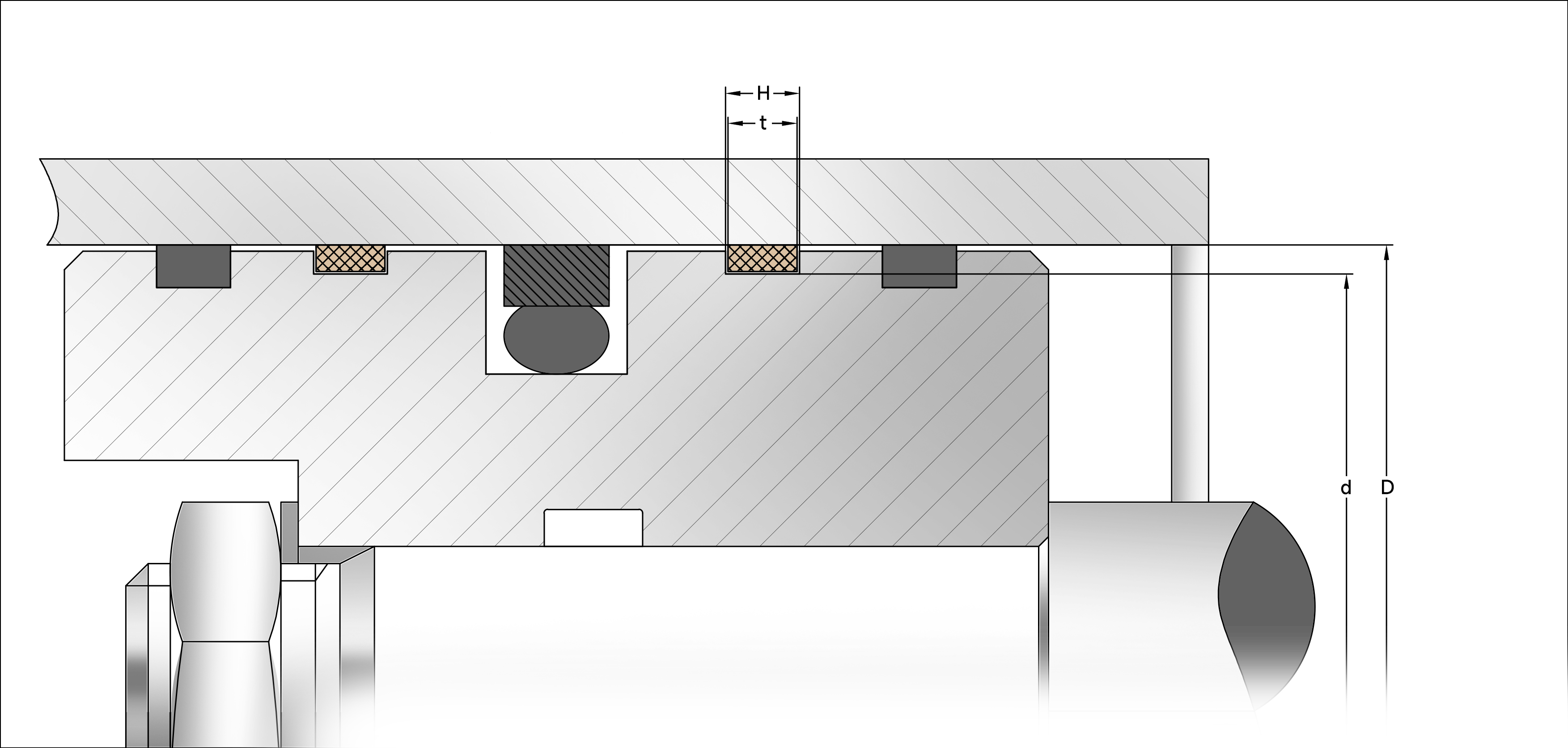

CAD应用图

尺寸规格
SpecificationdDtH
WR  50x45x3545502.535
WR  50x46x154650215
WR  54x48x154854315
WR  55x45x8455558
WR  55x50x850552.58
WR  55x50x9.750552.59.7
WR  55x50x12.550552.512.5
WR  55x50x1550552.515
WR  55x50x2050552.520
WR  55x50x2550552.525
WR  55x50x3050552.530
WR  55x51x8515528
WR  56x50x255056325
WR  59x53x155359315
WR  60x54x8546038
WR  60x54x155460315
WR  60x54x205460320
WR  60x55x6.155602.56.1
WR  60x55x855602.58
WR  60x55x9.755602.59.7
WR  60x55x1255602.512
WR  60x55x1555602.515
WR  60x55x2055602.520
WR  60x55x2555602.525
WR  60x55x3055602.530
WR  61x56x2056612.520
WR  62x55x1255623.512
WR  63x58x5.658632.55.6
WR  63x58x6.158632.56.1
WR  63x58x858632.58
WR  63x58x9.758632.59.7
WR  63x58x1258632.512
WR  63x58x1558632.515
WR  63x58x2058632.520
WR  63x58x2558632.525
WR  64x60x9.7606429.7
WR  65x58x9.758653.59.7
WR  65x58.4x16.358.4653.316.3
WR  65x59x9.7596539.7
WR  75x69x256975325
WR  75x69x306975330
WR  75x70x5.170752.55.1
WR  75x70x5.570752.55.5
WR  75x70x6.170752.56.1
WR  75x70x870752.58
WR  75x70x9.770752.59.7
WR  75x70x1270752.512
WR  75x70x1570752.515
WR  75x70x2070752.520
WR  75x70x2570752.525
WR  75x70x3070752.530
WR  75x70x4070752.540
WR  75x70x5070752.550
WR  80x72x12.57280412.5
WR  80x72x157280415
WR  80x74x4748034
WR  80x74x6.1748036.1
WR  80x74x8748038
WR  80x74x9.7748039.7
WR  80x74x127480312
WR  80x74x157480315
WR  80x74x207480320
WR  80x74x257480325
WR  80x74x307480330
WR  80x75x6.175802.56.1
WR  80x75x875802.58
WR  80x75x9.775802.59.7
WR  80x75x1275802.512
WR  80x75x1575802.515
WR  80x75x2075802.520
WR  80x75x2575802.525
WR  80x75x3075802.530
WR  80x76x157680215
WR  84x78x257884325
WR  85x72x1572856.515
WR  85x75x6.1758556.1
WR  85x75x207585520
WR  85x77x157785415
WR  85x79x12.57985312.5
WR  90x85x4085902.540
WR  94x84x8849458
WR  95x84x2084955.520
WR  95x85x9.7859559.7
WR  95x86x9.786954.59.7
WR  95x86x1286954.512
WR  95x86x1586954.515
WR  95x87x6.1879546.1
WR  95x87x158795415
WR  95x89x6.1899536.1
WR  95x89x9.7899539.7
WR  95x89x12.58995312.5
WR  95x89x158995315
WR  95x89x208995320
WR  95x89x258995325
WR  95x89x308995330
WR  95x90x490952.54
WR  95x90x6.190952.56.1
WR  95x90x890952.58
WR  95x90x9.790952.59.7
WR  95x90x12.590952.512.5
WR  95x90x1590952.515
WR  95x90x2090952.520
WR  95x90x2590952.525
WR  95x90x5090952.550
WR  96x90x249096324
WR  96x90x299096329
WR  100x91x9.7911004.59.7
WR  100x91x12.5911004.512.5
WR  100x92x9.79210049.7
WR  100x92x1592100415
WR  100x92x3092100430
WR  100x93.4x16.393.41003.316.3
WR  100x94x6.19410036.1
WR  100x94x99410039
WR  100x94x9.79410039.7
WR  100x94x1194100311
WR  100x94x12.594100312.5
WR  100x94x1594100315
WR  100x94x2094100320
WR  110x105x301051102.530
WR  110x100x15100110515
WR  110x100x24100110524
WR  110x101x6.11011104.56.1
WR  110x101x9.71011104.59.7
WR  110x101x12.51011104.512.5
WR  110x101x151011104.515
WR  110x101x27.51011104.527.5
WR  110x102x810211048
WR  110x102x12.5102110412.5
WR  110x102x15102110415
WR  110x102x20102110420
WR  110x102x25102110425
WR  110x103x351031103.535
WR  110x104x6.110411036.1
WR  110x104x810411038
WR  110x104x11104110311
WR  110x104x12104110312
WR  110x10415104110315
WR  110x104x20104110320
WR  110x104x22.5104110322.5
WR  110x104x25104110325
WR  110x104x27.5104110327.5
WR  110x104x30104110330
WR  110x104x35104110335
WR  110x104x40104110340
WR  110x105x41051102.54
WR  110x105x6.11051102.56.1
WR  110x105x81051102.58
WR  110x105x9.71051102.59.7
WR  110x105x12.51051102.512.5
WR  115x105x15105115515
WR  115x105x20105115520
WR  115x106x6.11061154.56.1
WR  115x106x9.71061154.59.7
WR  115x106x12.51061154.512.5
WR  115x106x151061154.515
WR  115x107x810711548
WR  115x107x12107115412
WR  115x107x15107115415
WR  120x115x6.11151202.56.1
WR  120x115x81151202.58
WR  120x115x9.71151202.59.7
WR  120x115x12.51151202.512.5
WR  120x115x151151202.515
WR  120x115x201151202.520
WR  120x115x251151202.525
WR  120x115x301151202.530
WR  120x115x351151202.535
WR  125x119x9.711912539.7
WR  125x119x15119125315
WR  125x119x16.5119125316.5
WR  125x119x20119125320
WR  125x119x22119125322
WR  125x119x25119125325
WR  125x119x30119125330
WR  125x119x35119125335
WR  125x119x40119125340
WR  125x120x6.11201252.56.1
WR  125x120x81201252.58
WR  125x120x9.71201252.59.7
WR  125x120x12.51201252.512.5
WR  125x120x151201252.515
WR  125x120x201201252.520
WR  125x120x251201252.525
WR  125x120x301201252.530
WR  125x120x401201252.540
WR  125x120x501201252.550
WR  125x121x22121125222
WR  125x109x20109125820
WR  125x109x30109125830
WR  125x115x15115125515
WR  125x115x20115125520
WR  125x116x151161254.515
WR  125x117x811712548
WR  125x117x15117125415
WR  125x118x9.71181253.59.7
WR  125x118x151181253.515
WR  125x118x201181253.520
WR  125x118x301181253.530
WR  135x127x15127135415
WR  135x127x25127135425
WR  135x128x9.71281353.59.7
WR  135x128x12.51281353.512.5
WR  135x128x151281353.515
WR  135x128x181281353.518
WR  135x128x201281353.520
WR  135x128x251281353.525
WR  135x128x351281353.535
WR  135x128x501281353.550
WR  135x129x6.112913536.1
WR  135x129x812913538
WR  135x129x15129135315
WR  135x129x20129135320
WR  135x129x25129135325
WR  135x129x30129135330
WR  135x129x35129135335
WR  135x130x81301352.58
WR  135x130x9.71301352.59.7
WR  135x130x12.51301352.512.5
WR  135x130x151301352.515
WR  138x133x23.51331382.523.5
WR  140x124x15124140815
WR  140x128x12.2128140612.2
WR  140x128x17.5128140617.5
WR  140x128x20128140620
WR  140x130x20130140520
WR  140x132x15132140415
WR  140x132x40132140440
WR  140x133x9.71331403.59.7
WR  140x133x12.51331403.512.5
WR  140x133x151331403.515
WR  140x133x17.51331403.517.5
WR  140x133x201331403.520
WR  140x133x251331403.525
WR  140x133x301331403.530
WR  140x133x351331403.535
WR  140x133x401331403.540
WR  140x133x451331403.545
WR  140x133x501331403.550
WR  145x140x401401452.540
WR  145x140x501401452.550
WR  147x140x151401473.515
WR  150x143x17.51431503.517.5
WR  150x143x201431503.520
WR  150x143x211431503.521
WR  150x143x221431503.522
WR  150x143x251431503.525
WR  150x143x301431503.530
WR  150x143x351431503.535
WR  150x143x401431503.540
WR  150x143x451431503.545
WR  150x143x501431503.550
WR  150x144x6.114415036.1
WR  150x144x15144150315
WR  150x144x20144150320
WR  150x144x25144150325
WR  150x144x35144150335
WR  150x144x40144150340
WR  150x144x50144150350
WR  150x145x81451502.58
WR  150x145x9.71451502.59.7
WR  150x145x12.51451502.512.5
WR  150x145x151451502.515
WR  150x145x201451502.520
WR  150x145x251451502.525
WR  150x145x351451502.535
WR  150x145x401451502.540
WR  150x145x501451502.550
WR  150x135x12.51351507.512.5
WR  150x138x12.5138150612.5
WR  150x138x15138150615
WR  150x138x17.5138150617.5
WR  150x142x814215048
WR  150x142x914215049
WR  150x142x15142150415
WR  150x142x20142150420
WR  150x142x25142150425
WR  150x142x40142150440
WR  150x143x151431503.515
WR  165x158x501581653.550
WR  165x159x9.715916539.7
WR  165x159x15159165315
WR  165x159x25159165325
WR  165x159x3015916530
WR  165x159x40159165340
WR  165x160x9.71601652.59.7
WR  165x160x12.51601652.512.5
WR  165x160x151601652.515
WR  165x160x201601652.520
WR  165x160x251601652.525
WR  165x160x301601652.530
WR  165x160x351601652.535
WR  165x160x401601652.540
WR  165x160x501601652.550
WR  165x153x20153165620
WR  165x157x15157165415
WR  165x157x20157165420
WR  165x157x25157165425
WR  165x157x30157165430
WR  165x157x35157165435
WR  165x157x45157165445
WR  165x157x50157165450
WR  165x158x151581653.515
WR  165x158x251581653.525
WR  170x158x15158170615
WR  170x158x17.5158170617.5
WR  170x158x20158170620
WR  170x162x15162170415
WR  170x162x20162170420
WR  170x162x22162170422
WR  170x162x25162170425
WR  170x162x27.5162170427.5
WR  170x162x28162170428
WR  170x162x30162170430
WR  170x162x35162170435
WR  170x162x40162170440
WR  170x162x45162170445
WR  170x162x50162170450
WR  170x163x151631703.515
WR  180x175x351751802.535
WR  180x175x401751802.540
WR  180x175x451751802.545
WR  180x175x501751802.550
WR  180x168x22.5168180622.5
WR  180x172x917218049
WR  180x172x12172180412
WR  180x172x12.5172180412.5
WR  180x172x15172180415
WR  180x172x20172180420
WR  180x172x22.5172180422.5
WR  180x172x25172180425
WR  180x172x27.5172180427.5
WR  180x172x28.3172180428.3
WR  180x172x30172180430
WR  180x172x35172180435
WR  180x172x40172180440
WR  180x172x45172180445
WR  180x172x50172180450
WR  180x172x55172180455
WR  180x173x22.51731803.522.5
WR  180x173x301731803.530
WR  180x173x451731803.545
WR  180x173x501731803.550
WR  185x172x22.51721856.522.5
WR  185x173x17.5173185617.5
WR  185x173x20173185620
WR  185x173x22.5173185622.5
WR  185x173x25173185625
WR  185x177x15177185415
WR  185x177x22.5177185422.5
WR  185x177x25177185425
WR  185x177x45177185445
WR  185x178x151781853.515
WR  185x179x20179185320
WR  185x180x81801852.58
WR  185x180x151801852.515
WR  185x180x201801852.520
WR  185x180x22.51801852.522.5
WR  185x180x251801852.525
WR  200x194x35194200335
WR  200x194x40194200340
WR  200x194x45194200345
WR  200x194x50194200350
WR  200x195x81952002.58
WR  200x195x9.71952002.59.7
WR  200x195x151952002.515
WR  200x195x201952002.520
WR  200x195x251952002.525
WR  200x195x301952002.530
WR  200x188x22.5188200622.5
WR  200x188x25188200625
WR  200x188x30188200630
WR  200x188x90188200690
WR  200x192x15192200415
WR  200x192x20192200420
WR  200x192x22.5192200422.5
WR  200x192x25192200425
WR  200x192x28.5192200428.5
WR  200x192x30192200430
WR  200x192x40192200440
WR  205x200x6.12002052.56.1
WR  205x200x152002052.515
WR  205x200x202002052.520
WR  205x200x252002052.525
WR  210x198x30198210630
WR  210x202x920221049
WR  210x202x28.5202210428.5
WR  210x203x202032103.520
WR  210x205x152052102.515
WR  210x205x202052102.520
WR  215x205x20205215520
WR  215x207x25207215425
WR  215x207x3020721530
WR  215x207x50207215450
WR  215x209x20209215320
WR  215x209x25209215325
WR  215x210x152102152.515
WR  215x210x202102152.520
WR  215x210x252102152.525
WR  235x230x152302352.515
WR  238x230x30230238430
WR  240x232x20232240420
WR  240x232x25232240425
WR  240x233x29.52332403.529.5
WR  240x234x50234240350
WR  240x235x152352402.515
WR  240x235x202352402.520
WR  240x235x302352402.530
WR  240x235x352352402.535
WR  240x235x402352402.540
WR  242x238x80238242280
WR  245x240x152402452.515
WR  245x240x202402452.520
WR  245x240x302402452.530
WR  250x238x22.5238250622.5
WR  250x238x25238250625
WR  250x238x27.5238250627.5
WR  250x242x25242250425
WR  250x242x55242250455
WR  250x244x20244250320
WR  250x244x25244250325
WR  250x245x302452502.530
WR  255x249x25249255325
WR  255x250x152502552.515
WR  255x250x202502552.520
WR  255x250x252502552.525
WR  260x252x15252260415
WR  260x253x222532603.522
WR  260x254x30254260330
WR  260x255x152552602.515
WR  260x255x202552602.520
WR  260x255x252552602.525
WR  260x255x302552602.530
WR  265x253x22253265622
WR  265x260x19.52602652.519.5
WR  265x260x252602652.525
WR  265x260x302602652.530
WR  266x260x25260266325
WR  266x260x30260266330
WR  345x340x303403452.530
WR  348x340x30340348430
WR  355x350x303503552.530
WR  360x352x25352360425
WR  360x352x35352360435
WR  360x355x24.63553602.524.6
WR  360x355x303553602.530
WR  360x355x403553602.540
WR  365x360x303603652.530
WR  380x368x30368380630
WR  380x375x303753802.530
WR  385x380x303803852.530
WR  396x390x30390396330
WR  400x395x303954002.530
WR  420x414x40414420340
WR  420x415x304154202.530
WR  475x470x304704752.530
WR  475x470x404704752.540
WR  500x495x304955002.530
相关产品
KTZ (1)
KZT
支撑/纳污环
挡圈垫片N4W (1)
N4W
挡圈
联系我们
可选
产品名称
名称1
名称2
名称3
名称4
机械类型
机械类型1
机械类型2
机械类型3
机械类型4
立即发送
联系电话:+86 139 22719156
账号登录
立即登录
* 联系我们购买以获得会员资格
