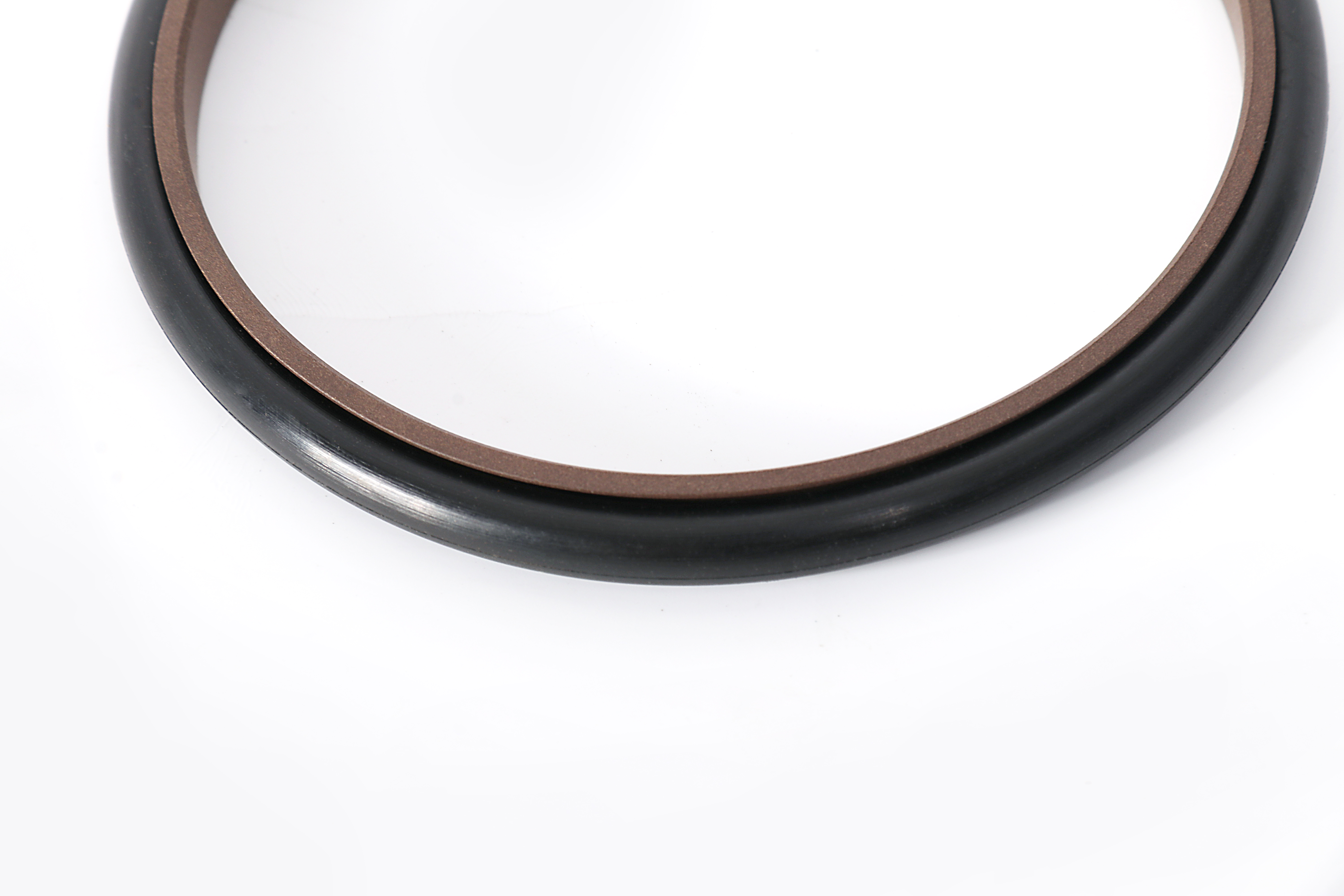

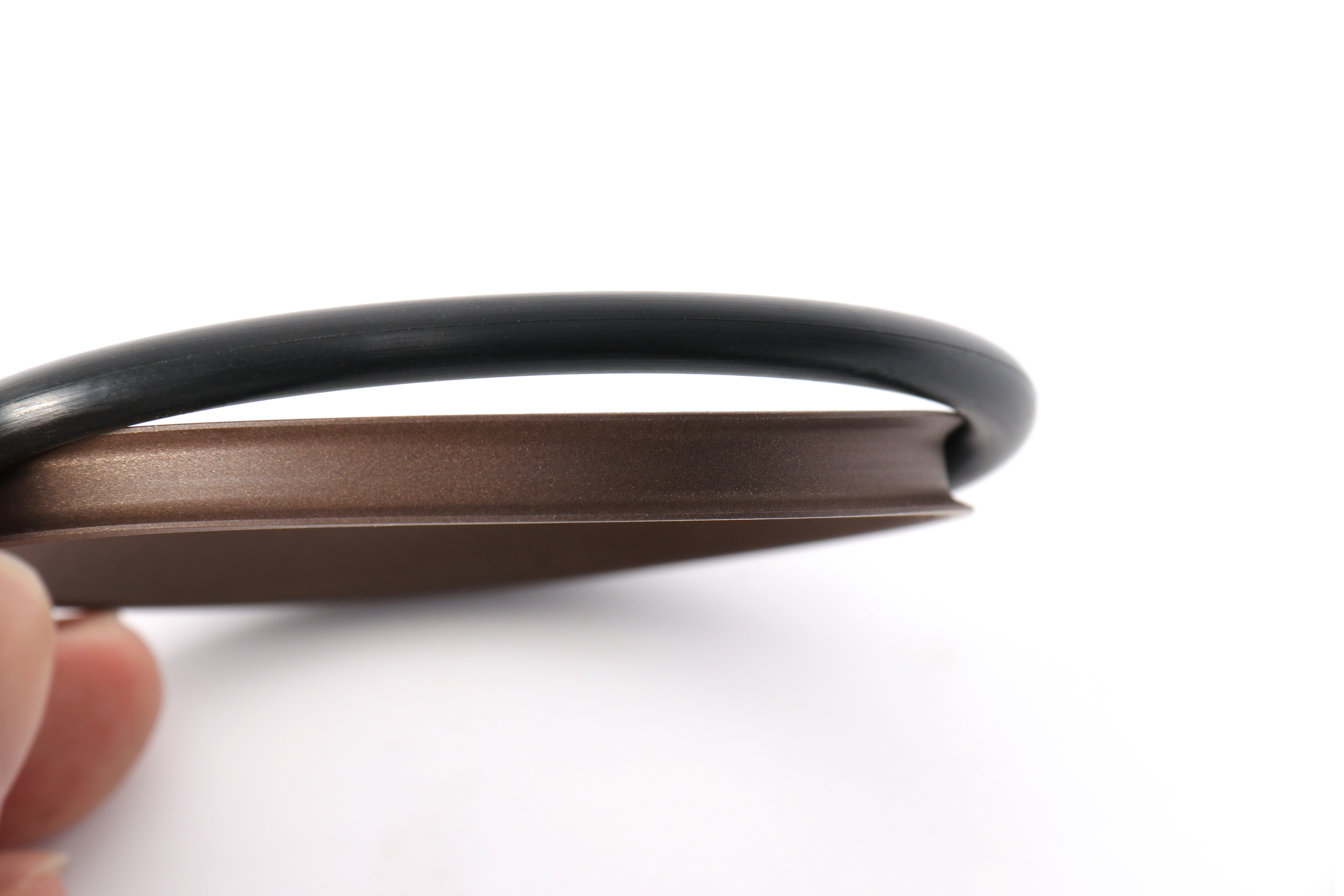

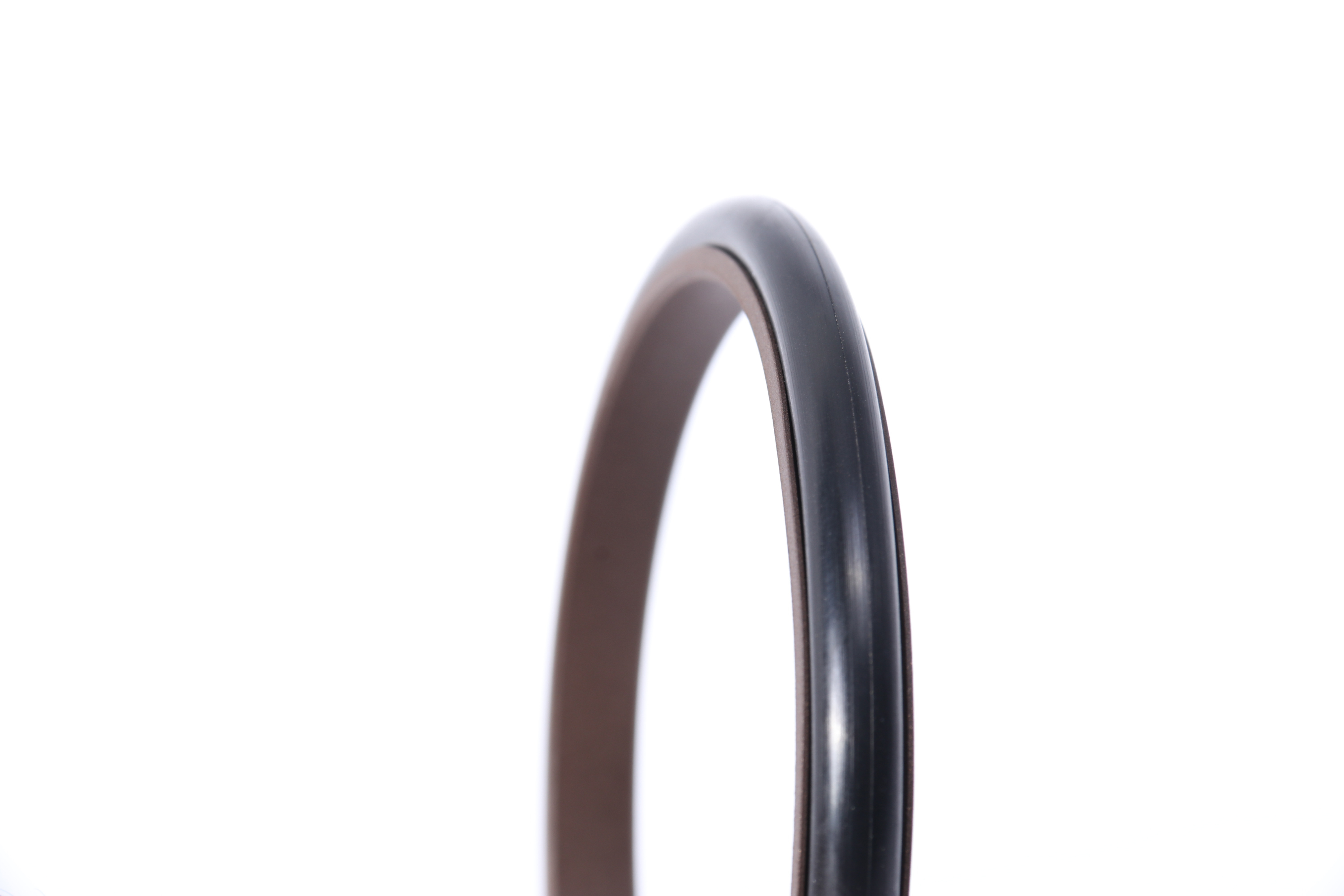

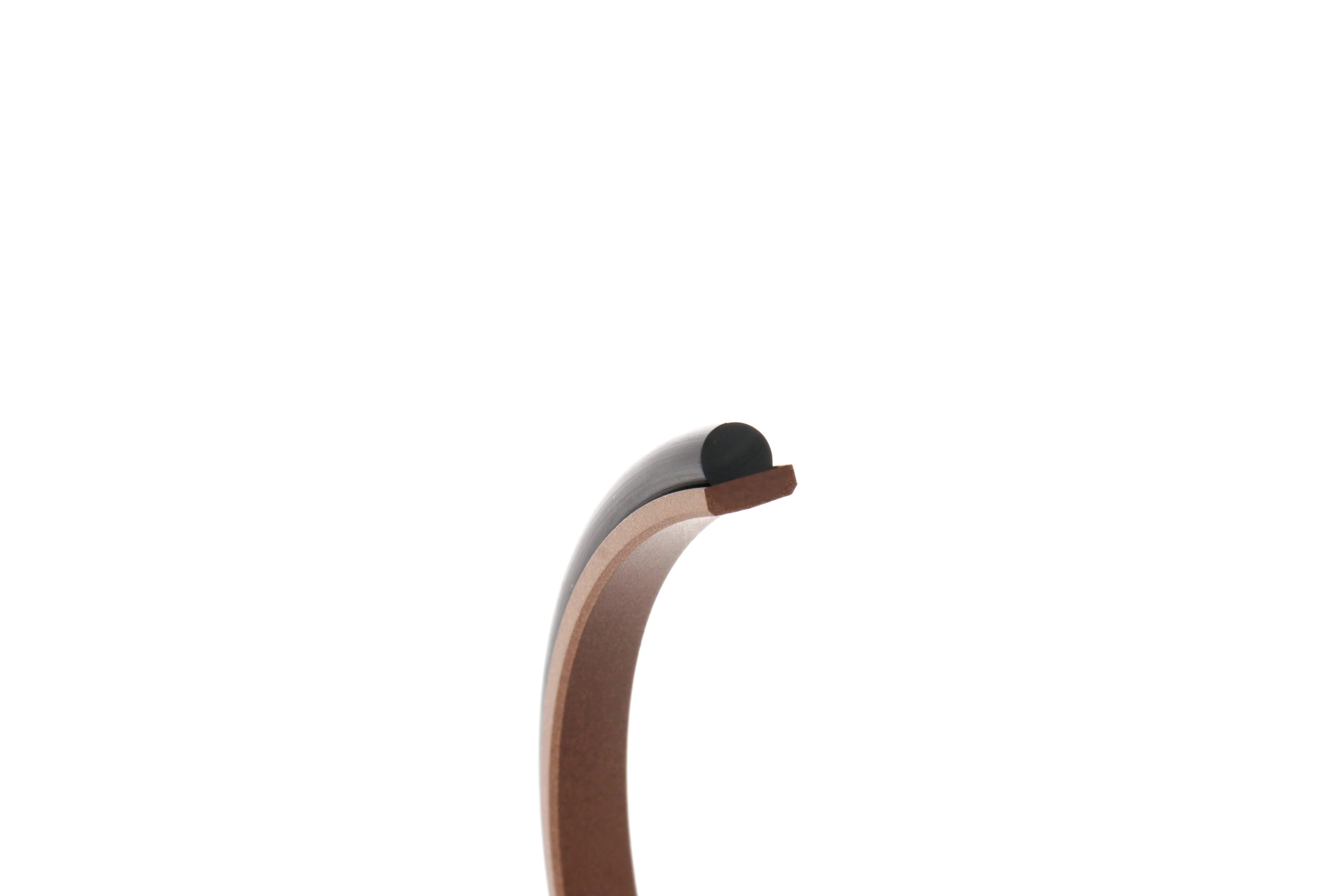

SPNO
Swing Seal
Advantages and Characteristics
SPNO, also known as reverse SPGO, is suitable for one-way piston rod buffer seals in oil cylinders. It can be used in series to withstand higher pressures.
PTFE slip rings can achieve high linear speeds. By changing the elastomer to FKM, high temperatures up to 180℃ can be reached.
Materials ：
Colors ：
Brown
Quantity：
Technology and Parameters
Technical Specifications
| 材料 | 温度 | 压力 | 线速度 | 颜色 |
| PTFE+NBR/PTFE+FKM | -40° +110° /-30° +200° | <300 | <1.0 | 棕 |

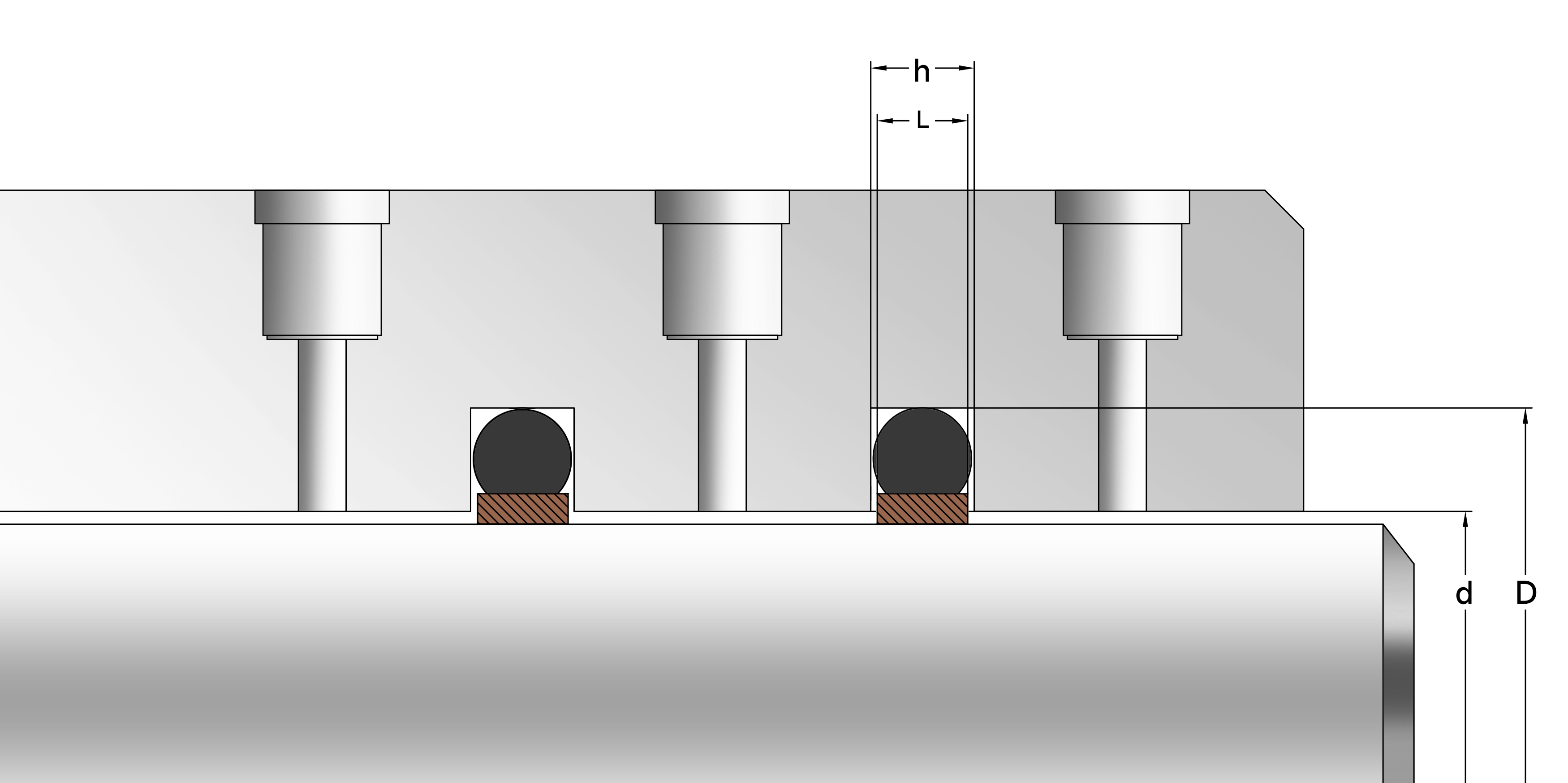

CAD application diagram
Dimensions
| Specification | d | D | h | H |
| SPNO 12x18x3 | 12 | 18 | 3 | 3.2 |
| SPNO 14x20x3 | 14 | 20 | 3 | 3.2 |
| SPNO 16x22x3 | 16 | 22 | 3 | 3.2 |
| SPNO 18x24x3 | 18 | 24 | 3 | 3.2 |
| SPNO 20x26x3 | 20 | 26 | 3 | 3.2 |
| SPNO 22x31x3.8 | 22 | 31 | 3.8 | 4 |
| SPNO 25x34x3.8 | 25 | 34 | 3.8 | 4 |
| SPNO 28x37x3.8 | 28 | 37 | 3.8 | 4 |
| SPNO 30x39x3.8 | 30 | 39 | 3.8 | 4 |
| SPNO 32x41x3.8 | 32 | 41 | 3.8 | 4 |
| SPNO 36x45x3.8 | 36 | 45 | 3.8 | 4 |
| SPNO 40x49x3.8 | 40 | 49 | 3.8 | 4 |
| SPNO 45x54x3.8 | 45 | 54 | 3.8 | 4 |
| SPNO 50x65x6.3 | 50 | 65 | 6.3 | 6.5 |
| SPNO 56x71x6.3 | 56 | 71 | 6.3 | 6.5 |
| SPNO 60x75x6.3 | 60 | 75 | 6.3 | 6.5 |
| SPNO 63x78x6.3 | 63 | 78 | 6.3 | 6.5 |
| SPNO 70x85x6.3 | 70 | 85 | 6.3 | 6.5 |
| SPNO 75x90x6.3 | 75 | 90 | 6.3 | 6.5 |
| SPNO 80x95x6.3 | 80 | 95 | 6.3 | 6.5 |
| SPNO 85x100x6.3 | 85 | 100 | 6.3 | 6.5 |
| SPNO 90x105x6.3 | 90 | 105 | 6.3 | 6.5 |
| SPNO 95x110x6.3 | 95 | 110 | 6.3 | 6.5 |
| SPNO 100x115x6.3 | 100 | 115 | 6.3 | 6.5 |
| SPNO 105x120x6.3 | 105 | 120 | 6.3 | 6.5 |
| SPNO 110x125x6.3 | 110 | 125 | 6.3 | 6.5 |
| SPNO 115x130x6.3 | 115 | 130 | 6.3 | 6.5 |
| SPNO 120x135x6.3 | 120 | 135 | 6.3 | 6.5 |
| SPNO 125x140x6.3 | 125 | 140 | 6.3 | 6.5 |
| SPNO 130x145x6.3 | 130 | 145 | 6.3 | 6.5 |
| SPNO 135x150x6.3 | 135 | 150 | 6.3 | 6.5 |
| SPNO 140x155x6.3 | 140 | 155 | 6.3 | 6.5 |
| SPNO 145x160x6.3 | 145 | 160 | 6.3 | 6.5 |
| SPNO 150x170x9.8 | 150 | 170 | 9.8 | 10 |
| SPNO 160x180x9.8 | 160 | 180 | 9.8 | 10 |
| SPNO 170x190x9.8 | 170 | 190 | 9.8 | 10 |
| SPNO 180x200x9.8 | 180 | 200 | 9.8 | 10 |
| SPNO 190x210x9.8 | 190 | 210 | 9.8 | 10 |
| SPNO 200x220x9.8 | 200 | 220 | 9.8 | 10 |
| SPNO 210x230x9.8 | 210 | 230 | 9.8 | 10 |
| SPNO 220x240x9.8 | 220 | 240 | 9.8 | 10 |
| SPNO 224x244x9.8 | 224 | 244 | 9.8 | 10 |
| SPNO 230x250x9.8 | 230 | 250 | 9.8 | 10 |
| SPNO 240x260x9.8 | 240 | 260 | 9.8 | 10 |
| SPNO 250x270x9.8 | 250 | 270 | 9.8 | 10 |
| SPNO 260x280x9.8 | 260 | 280 | 9.8 | 10 |
| SPNO 270x290x9.8 | 270 | 290 | 9.8 | 10 |
| SPNO 280x300x9.8 | 280 | 300 | 9.8 | 10 |
| SPNO 290x310x9.8 | 290 | 310 | 9.8 | 10 |
| SPNO 300x320x9.8 | 300 | 320 | 9.8 | 10 |
| SPNO 310x330x9.8 | 310 | 330 | 9.8 | 10 |
| SPNO 320x340x9.8 | 320 | 340 | 9.8 | 10 |
| SPNO 330x350x9.8 | 330 | 350 | 9.8 | 10 |
| SPNO 340x360x9.8 | 340 | 360 | 9.8 | 10 |
| SPNO 350x370x9.8 | 350 | 370 | 9.8 | 10 |
| SPNO 360x380x9.8 | 360 | 380 | 9.8 | 10 |
| SPNO 370x390x9.8 | 370 | 390 | 9.8 | 10 |
| SPNO 380x400x9.8 | 380 | 400 | 9.8 | 10 |
