HRX

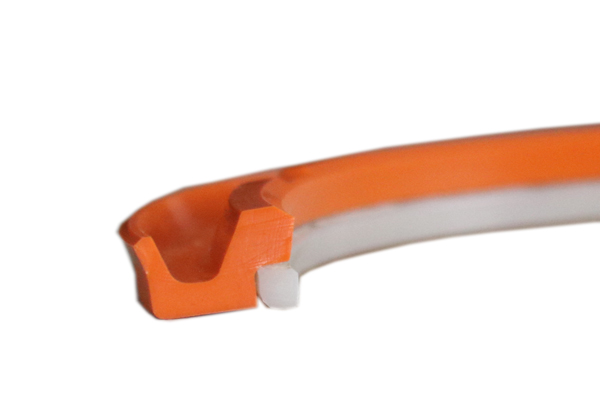

产品结构图
产品介绍
HRX 缓冲密封（往复运动）
| NOTE:INTERNATIONAL DIMENSIONING | ||||||||
| 注解：国际尺寸标注法 SIZE | ||||||||
| 例 eg： HBY 40 55.5 6 | ||||||||
| 名称 | NAME | 尺寸 | SIZE | |||||
| 内径（d) | 外径（D) | 高（h) | ||||||
| 材质： | 聚氨酯+尼龙 | MATERIAL： | PU+NYLON | |||||
| 特殊标注：尺寸表里标注的尺寸是日标规格，(标准材料耐温-35-100，耐热材料耐温-10-110），如果你有特殊要求请联系我们。 | ||||||||
| NOTE:ALL SIZES ARE SUBJECT TO JAPANESE STANDARD,(STANDARD MATERIAL'S HEAT TOLERANCE IS -35 TO +100 WHILE HEAT-RESISTING MATERIAL IS -10 TO +110),CONTACT US IN THE CASE OF SPECIAL REQUIREMENT | ||||||||
产品参数

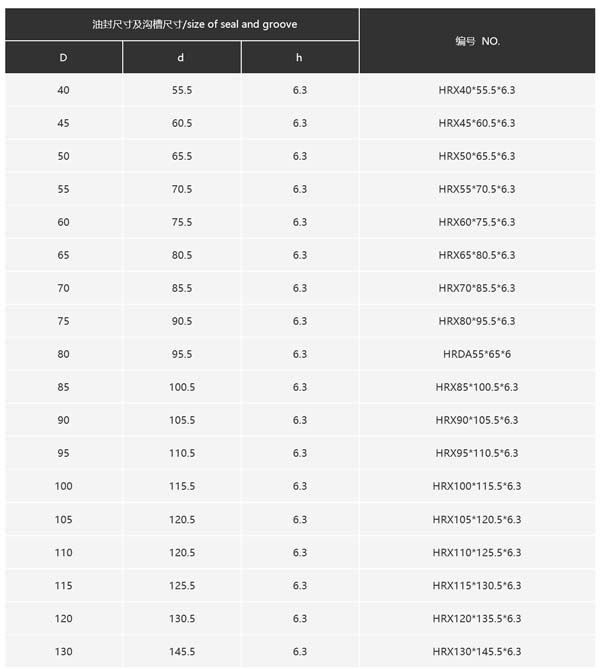

产品规格
