ROI yellow

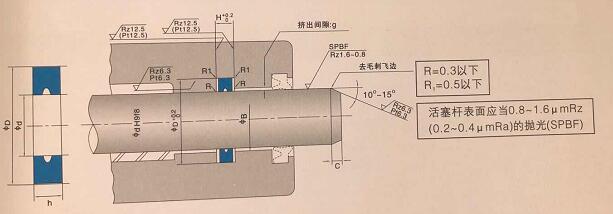

Structural drawing

Introduce

注解:国际尺寸标注法   SIZE
eg  ROI  60.5  70.5  4.8
名称 NAME  尺寸 SIZE
内径(d) 外径(D) 高(h)
材质: 聚氨酯 MAERIAL: PU
特殊标注:尺寸表里标注的尺寸是日标规格,原材料是标准原材料(标准材料耐温-35-100,耐热材料耐温-10-110),如果你有特殊要求请联系我们。
NOTE:ALL SIZES ARE SUBJECT TO JAPANESE STANDARD,(STANDARD MATERIAL'S HEAT TOLERANCE IS -35 TO +100 WHILE HEAT-RESISTING MATERIAL IS -10 TO +110),CONTACT US IN THE CASE OF SPECIAL REQUIREMENT

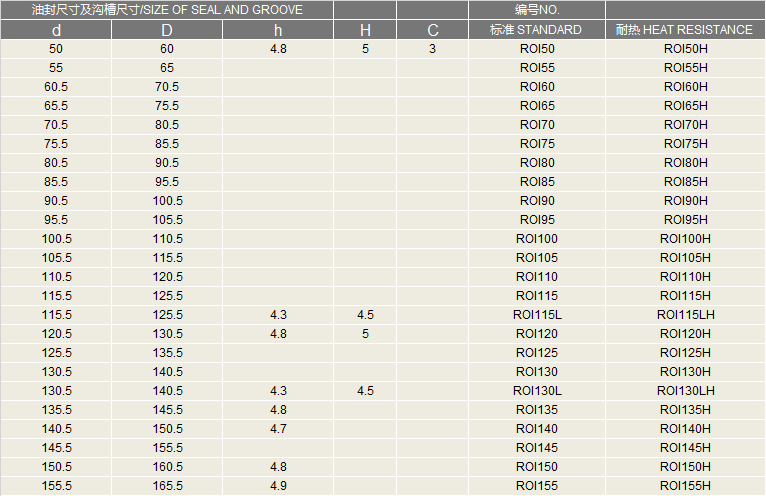

Parameter

Specifications
