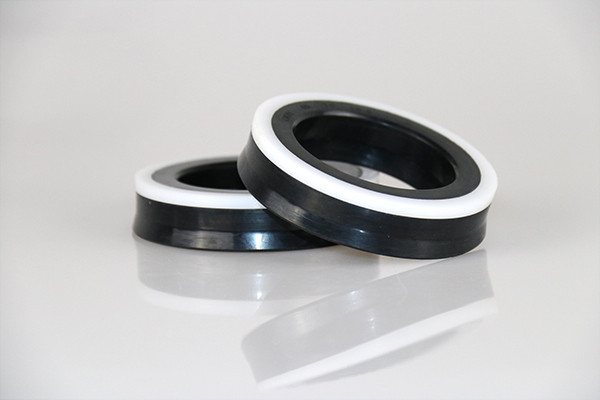

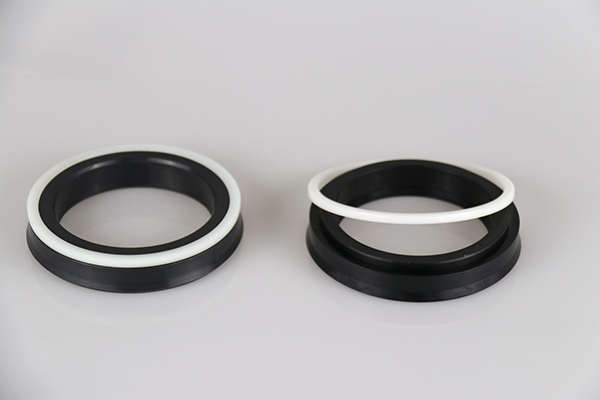

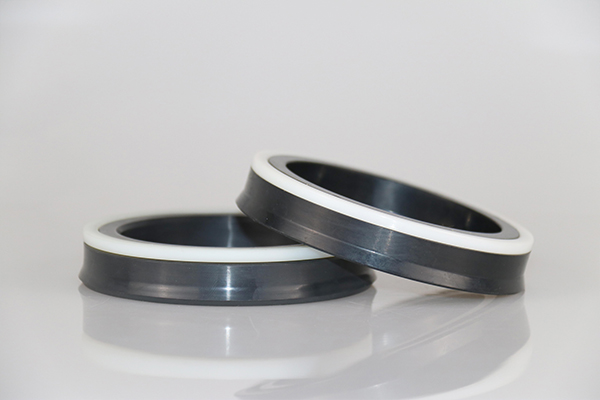

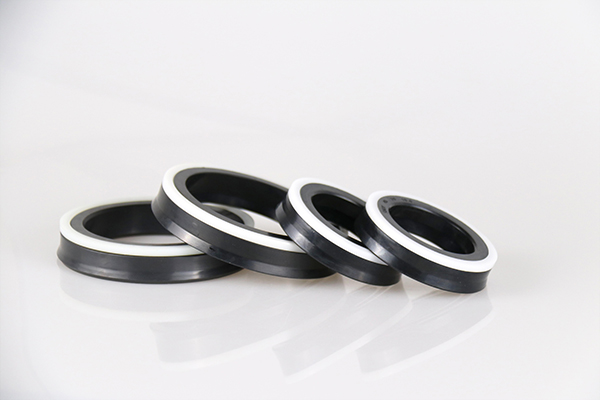

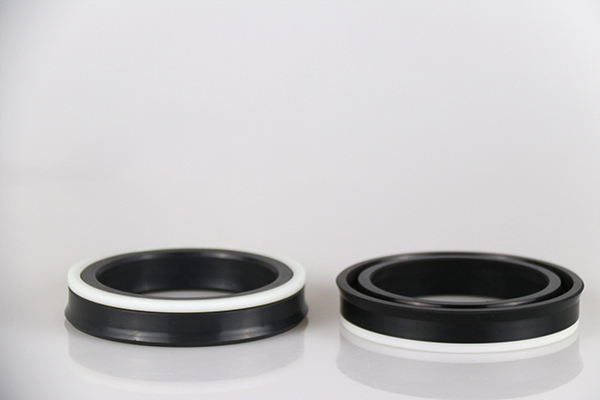

OUY white

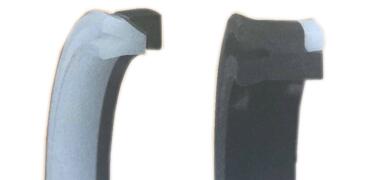

Structural drawing
Introduce

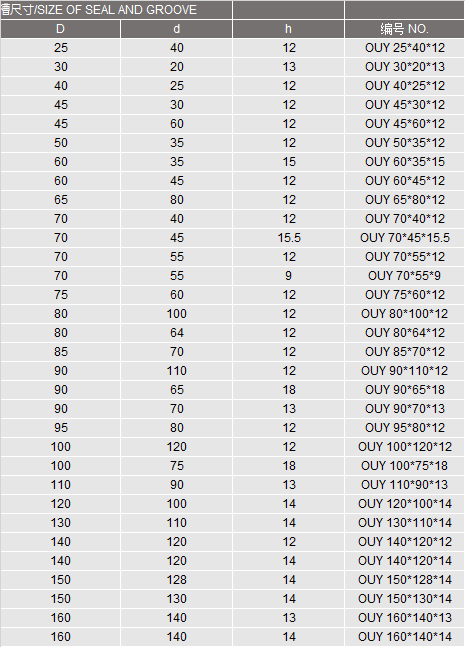

| NOTE:INTERNATIONAL DIMENSIONING | ||||||
| 注解：国际尺寸标注法 SIZE | ||||||
| 例 eg： OUY 40 25 12 | ||||||
| 名称 | NAME | 尺寸 | SIZE | |||
| 缸筒内径（D) | 沟槽直径（A1 A2) | 沟槽宽度（A2) | 高（G1) | |||
| 材质： | 丁晴橡胶(聚氨酯）+尼龙 | MATERIAL:NBR(PU)+NYLON | ||||
| 特殊标注：尺寸表里标注的尺寸是日标规格，如果你有特殊要求请联系我们。 | ||||||
| NOTE:ALL SIZES ARE SUBJECT TO JAPANESE STANDARD,CONTACT US IN THE CASE OF SPECIAL REQUIREMENT | ||||||
