HBTS

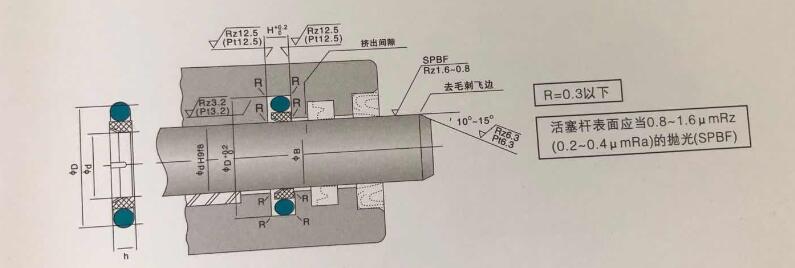

Structural drawing
Introduce
| NOTE:INTERNATIONAL DIMENSIONING | ||||||||
| 注解：国际尺寸标注法 SIZE | ||||||||
| 例 eg： HBTS 4 8.9 2 | ||||||||
| 名称 | NAME | 尺寸 | SIZE | |||||
| 内径（d) | 外径（D) | 高（h) | ||||||
| 材质： | 铁氟龙+ | 丁晴橡胶 | MATERIAL： | TEFLON+ | NBR | |||
| 氟橡胶 | VITON | |||||||
| 特殊标注：尺寸表里标注的尺寸是日标规格，(标准材料耐温-40-100，耐热材料耐温-10-200），如果你有特殊要求请联系我们。 | ||||||||
| NOTE:ALL SIZES ARE SUBJECT TO JAPANESE STANDARD,(STANDARD MATERIAL'S HEAT TOLERANCE IS -40 TO +100 WHILE HEAT-RESISTING MATERIAL IS -10 TO +200),CONTACT US IN THE CASE OF SPECIAL REQUIREMENT | ||||||||
Parameter

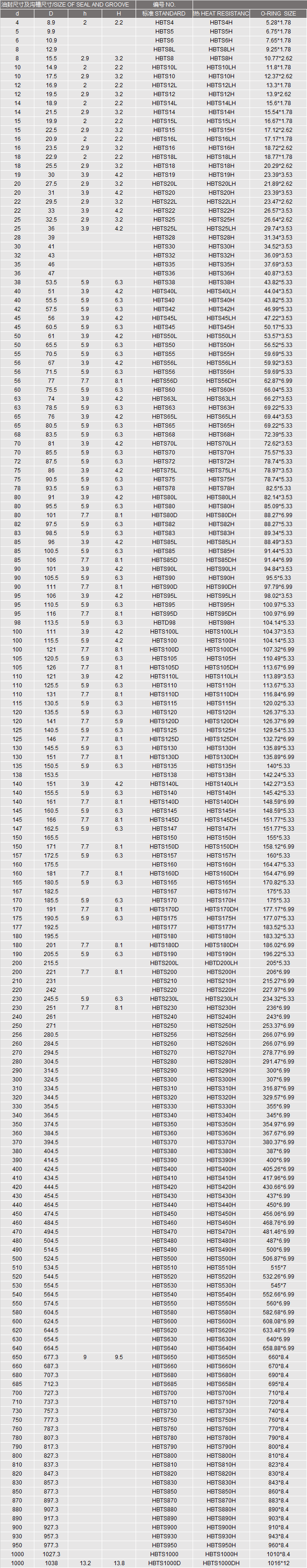

Specifications
