DSI yellow

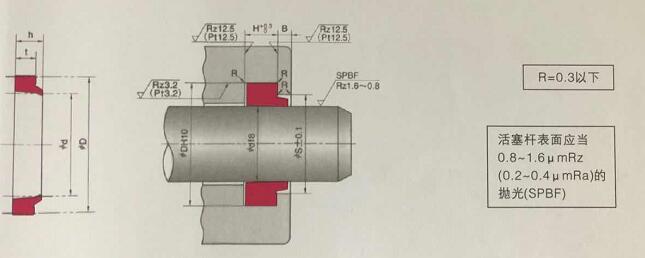

Structural drawing
Introduce
DSI 防尘密封 （往复运动）

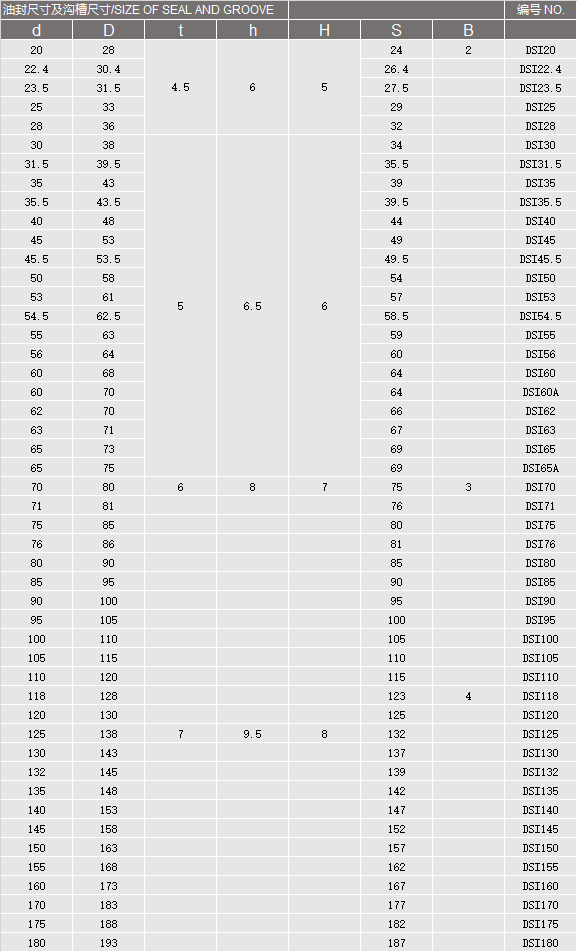

| NOTE:INTERNATIONAL DIMENSIONING | ||||||||
| 注解：国际尺寸标注法 SIZE | ||||||||
| 例 eg： DSI 20 28 4.5 6 | ||||||||
| 名称 | NAME | 尺寸 | SIZE | |||||
| 内径（d) | 外径（D) | 厚度（t) | 高度（h) | |||||
| 材质： | 聚氨酯 | MATERIAL： | PU | |||||
| 特殊标注：尺寸表里标注的尺寸是日标规格，如果你有特殊要求请联系我们。 | ||||||||
| NOTE:ALL SIZES ARE SUBJECT TO JAPANESE STANDARD,CONTACT US IN THE CASE OF SPECIAL REQUIREMENT | ||||||||
Parameter
Specifications
