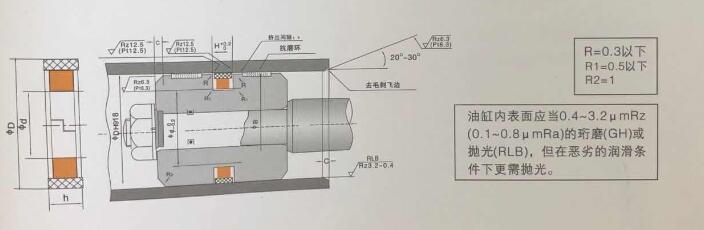

Structural drawing
Introduce

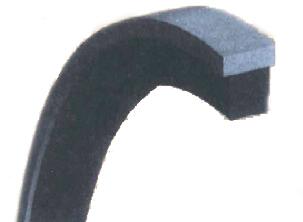

OK TYPE PISTON SEAL ( RECIPROCATING)

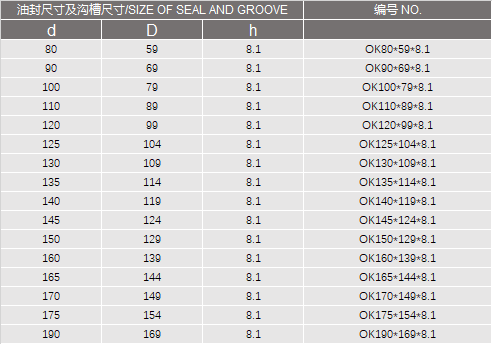

| NOTE:INTERNATIONAL DIMENSIONING | ||||||||
| 注解：国际尺寸标注法 SIZE | ||||||||
| 例 eg： OK SEAL 75 59.5 6 | ||||||||
| 名称 | NAME | 尺寸 | SIZE | |||||
| 外径（D) | 内径（d) | 高（h) | ||||||
| 材质： | 丁晴橡胶+尼龙+聚甲醛 | MATERIAL:NBR+NYLON+POM | ||||||
| 特殊标注：尺寸表里标注的尺寸是日标规格，如果你有特殊要求请联系我们。 | ||||||||
| NOTE:ALL SIZES ARE SUBJECT TO JAPANESE STANDARD,CONTACT US IN THE CASE OF SPECIAL REQUIREMENT | ||||||||
Parameter
Specifications
