DKI

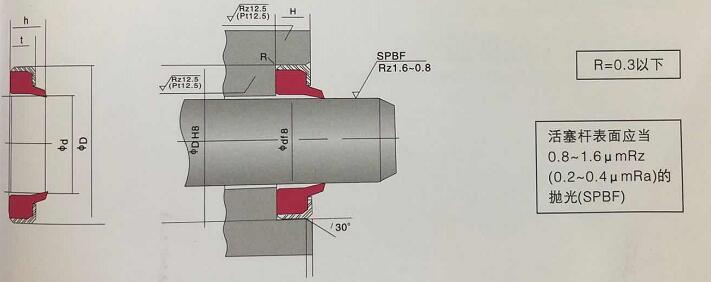

Structural drawing
Introduce
| NOTE:INTERNATIONAL DIMENSIONING | |||||||
| 注解：国际尺寸标注法 SIZE | |||||||
| 例 eg： DKI 22 34 6 9 | |||||||
| 名称 | NAME | 尺寸 | SIZE | ||||
| 内径（d) | 外径（D) | 厚（t) | 高度（h) | ||||
| 材质： | 聚氨酯+金属环 | MATERIAL： | PU+SPCC | ||||
| 特殊标注：尺寸表里标注的尺寸是日标规格，如果你有特殊要求请联系我们。 | |||||||
| NOTE:ALL SIZES ARE SUBJECT TO JAPANESE STANDARD,CONTACT US IN THE CASE OF SPECIAL REQUIREMENT | |||||||
Parameter

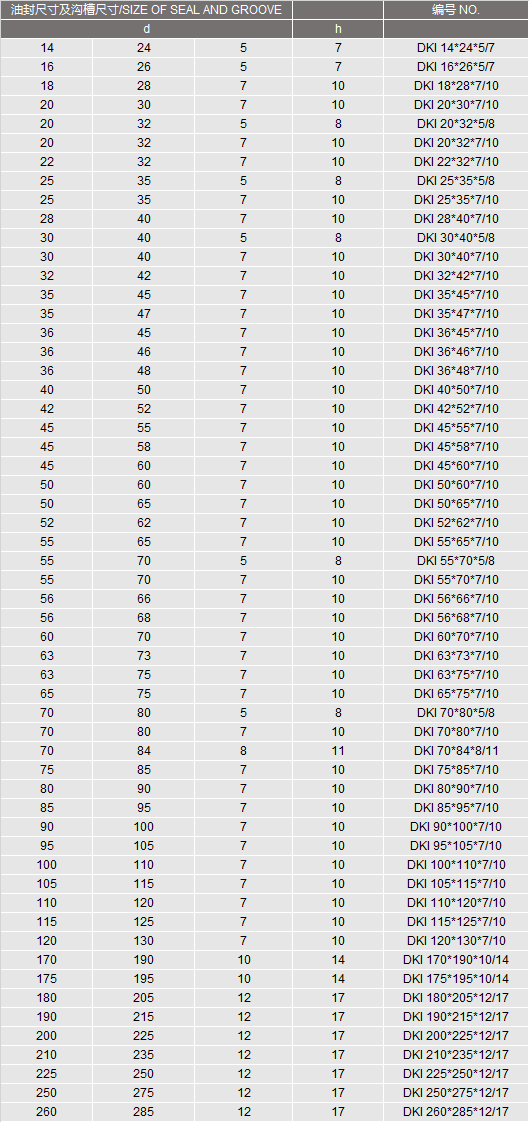

Specifications
