DKB

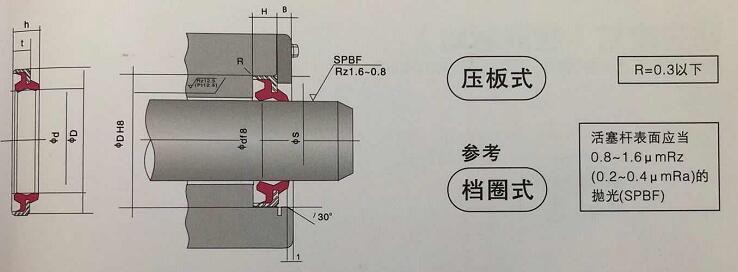

Structural drawing
Introduce
DKB TYPE DUST SEAL (RECIPROCATING)
| NOTE:INTERNATIONAL DIMENSIONING | ||||||||
| 注解：国际尺寸标注法 SIZE | ||||||||
| 例 eg： DKB 25 37 6 9 | ||||||||
| 名称 | NAME | 尺寸 | SIZE | |||||
| 内径（d) | 外径（D) | 厚（t) | 高度（h) | |||||
| 材质： | 丁晴橡胶+金属环 | MATERIAL： | NBR+SPCC | |||||
| 特殊标注：尺寸表里标注的尺寸是日标规格，如果你有特殊要求请联系我们。 | ||||||||
| NOTE:ALL SIZES ARE SUBJECT TO JAPANESE STANDARD,CONTACT US IN THE CASE OF SPECIAL REQUIREMENT | ||||||||

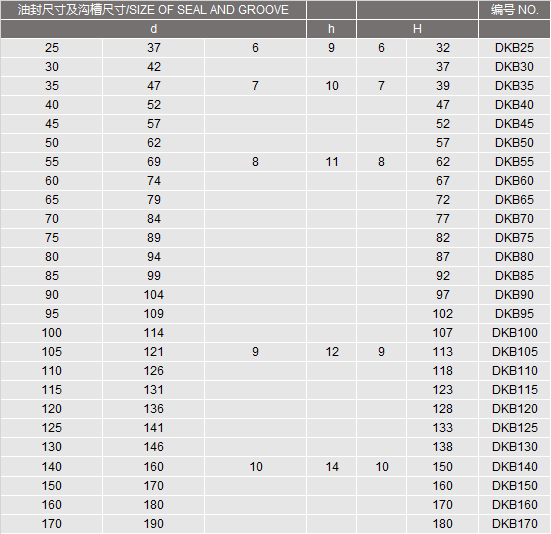

Parameter
Specifications
