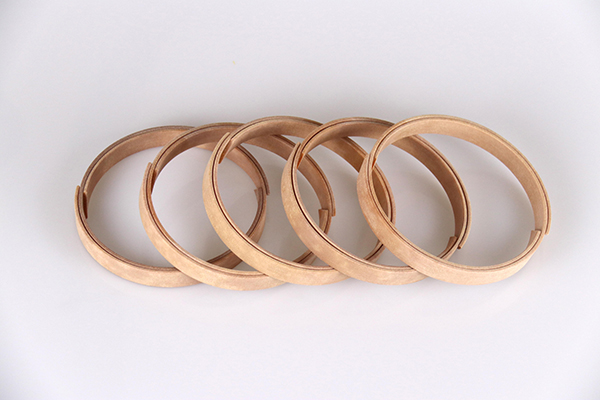

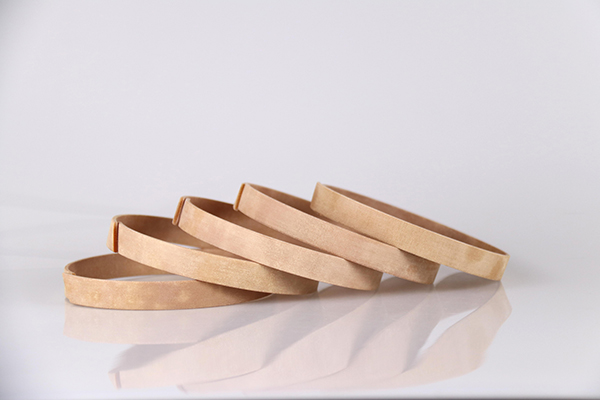

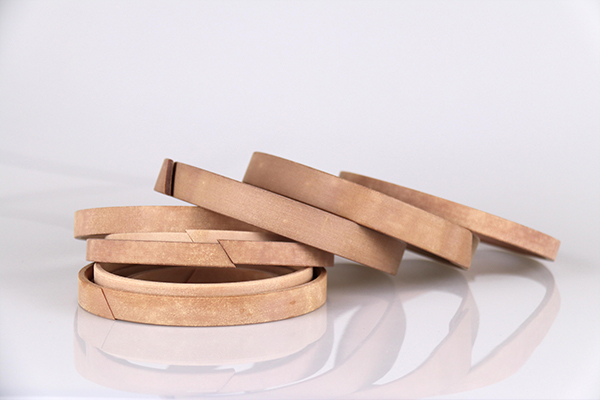

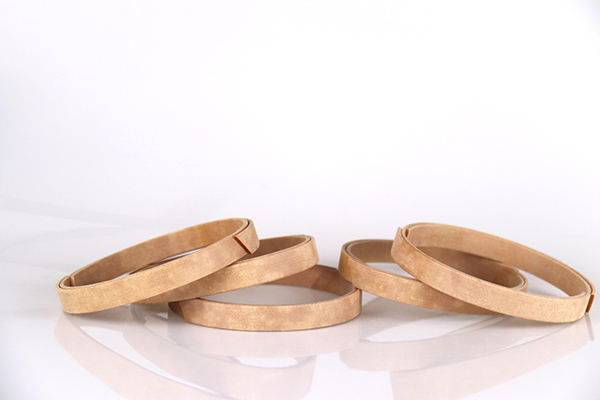

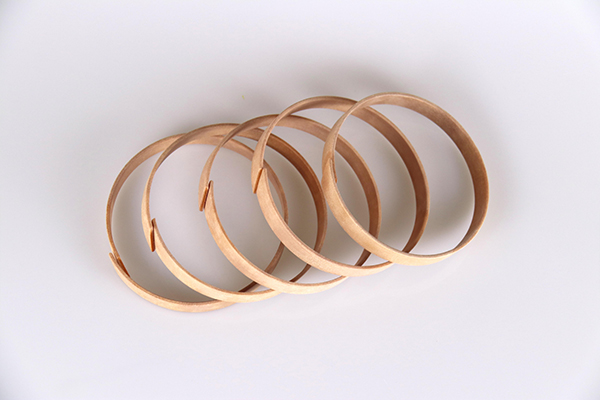

WR Wear Ring
Structural drawing
Introduce
NOTE:INTERNATIONAL DIMENSIONING
注解：国际尺寸标注法 SIZE
例 eg： WR 35 30 9.5
名称
NAME
尺寸
SIZE
外径（D)
内径（d)
高（h)
材质：
树脂+布
MATERIAL:PHENOLIC RESIN
+ FABRIC
特殊标注：尺寸表里标注的尺寸是日标规格，如果你有特殊要求请联系我们。
NOTE:ALL SIZES ARE SUBJECT TO JAPANESE STANDARD,CONTACT US IN
THE CASE OF SPECIAL REQUIREMENT
Parameter
Specifications
