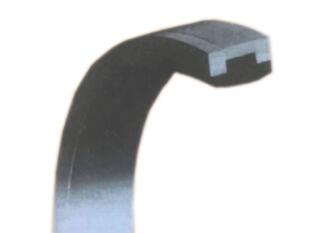

SPGW piston seal

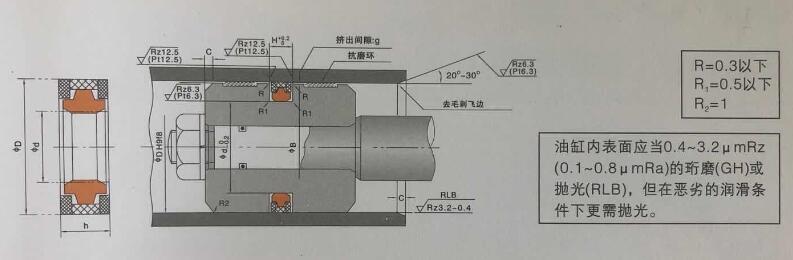

Structural drawing
Introduce
NOTE:INTERNATIONAL DIMENSIONING
注解：国际尺寸标注法 SIZE
例 eg： SPGW 50 36 8.5
名称
NAME
尺寸
SIZE
外径（D)
内径（d)
高（h)
材质：
铁氟龙+
尼龙
丁晴橡胶
MATERIAL：
TEFLON+
NYLON
NBR
氟橡胶
VITON
特殊标注：尺寸表里标注的尺寸是日标规格，(标准材料耐温-40-100，耐热材料耐温-10-200），如果你有特殊要求请联系我们。
NOTE:ALL SIZES ARE SUBJECT TO JAPANESE STANDARD,(STANDARD
MATERIAL'S HEAT TOLERANCE IS -40 TO +100 WHILE HEAT-RESISTING MATERIAL IS -10
TO +200),CONTACT US IN THE CASE OF SPECIAL REQUIREMENT
Parameter

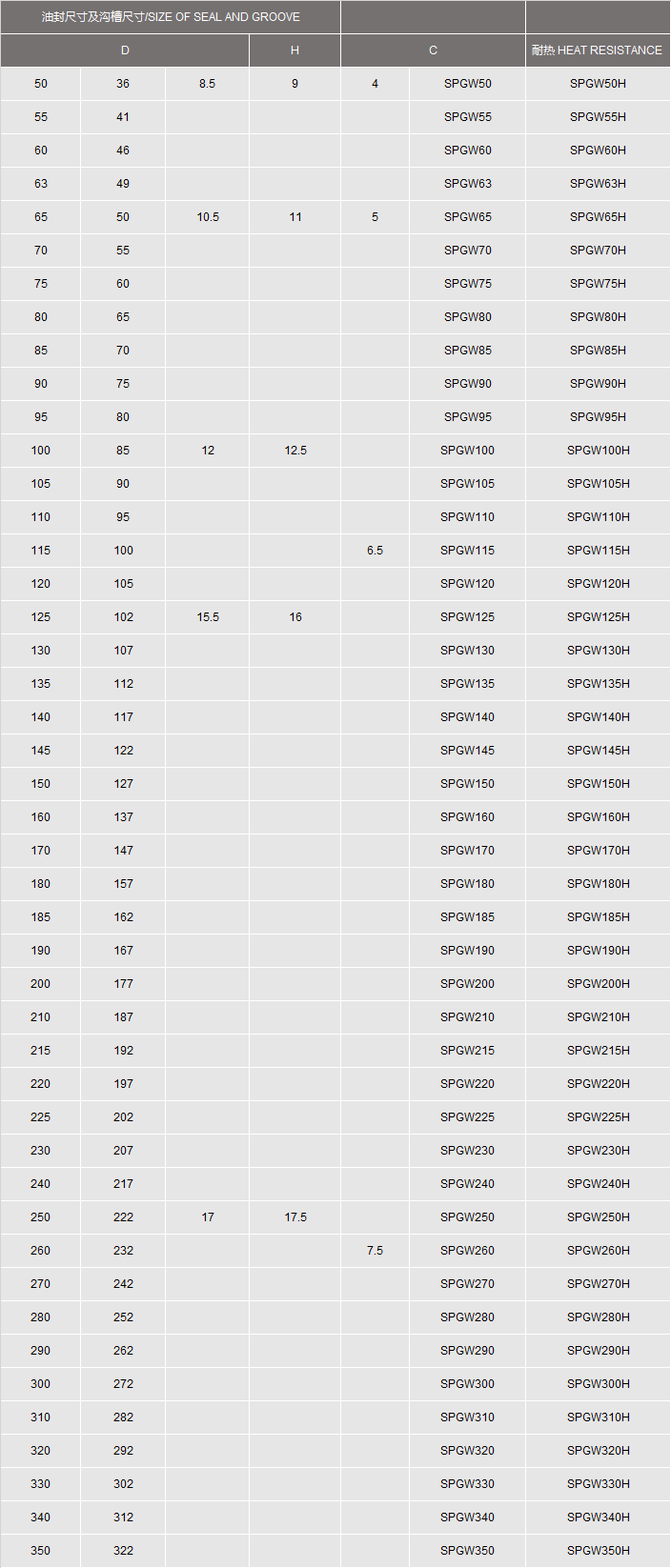

Specifications
