ROI

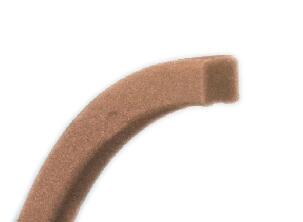

Structural drawing
Introduce

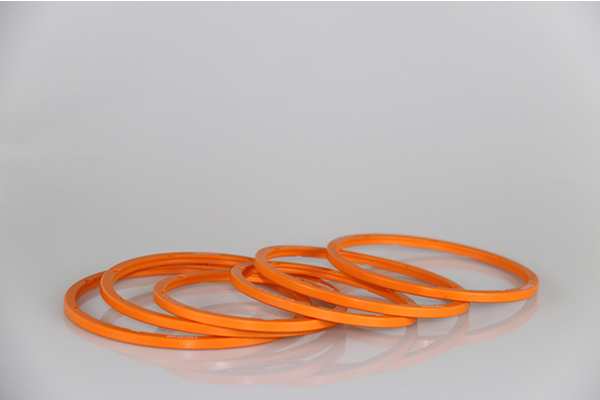

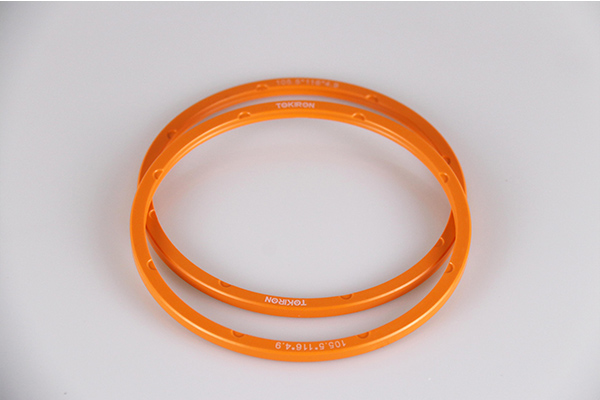

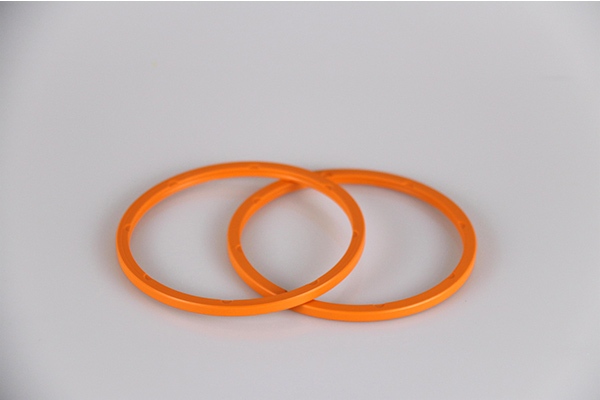

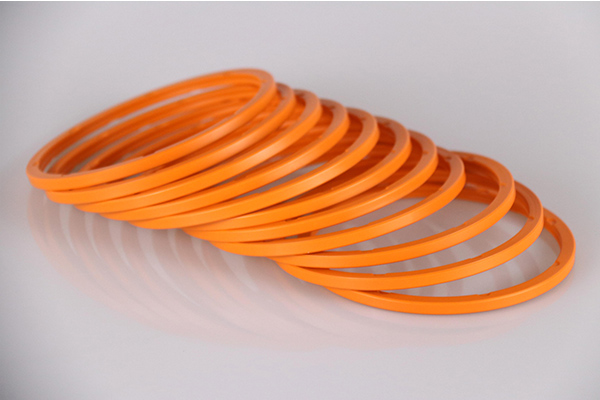

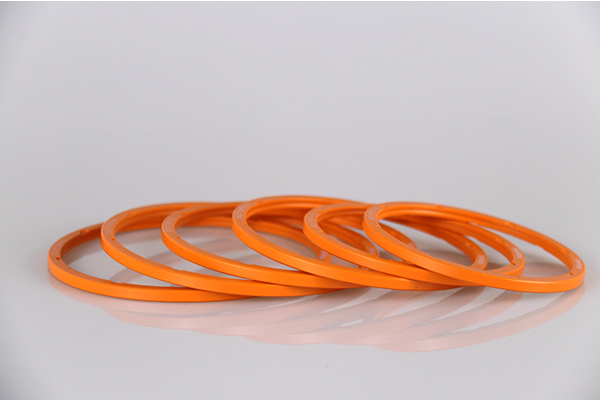

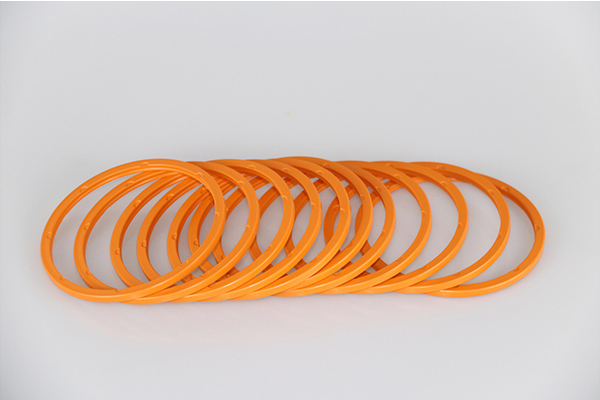

ROI TYPE CENTER JOINT SEAL ( ROTATING)
| 注解：国际尺寸标注法 SIZE | ||||||||
| 例eg： ROI 60.5 70.5 4.8 | ||||||||
| 名称 | NAME | 尺寸 | SIZE | |||||
| 内径（d) | 外径（D) | 高（h) | ||||||
| 材质： | 聚氨酯 | MAERIAL: | PU | |||||
| 特殊标注：尺寸表里标注的尺寸是日标规格，原材料是标准原材料(标准材料耐温-35-100，耐热材料耐温-10-110），如果你有特殊要求请联系我们。 | ||||||||
| NOTE:ALL SIZES ARE SUBJECT TO JAPANESE STANDARD,(STANDARD MATERIAL'S HEAT TOLERANCE IS -35 TO +100 WHILE HEAT-RESISTING MATERIAL IS -10 TO +110),CONTACT US IN THE CASE OF SPECIAL REQUIREMENT | ||||||||
Parameter
Specifications
